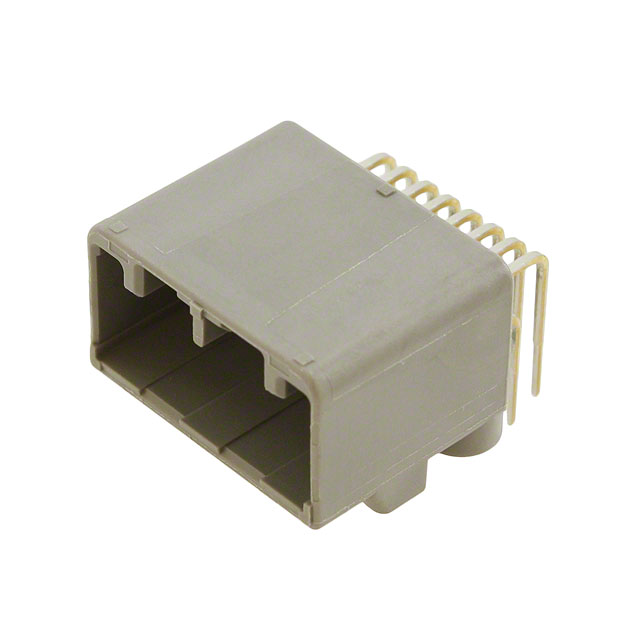

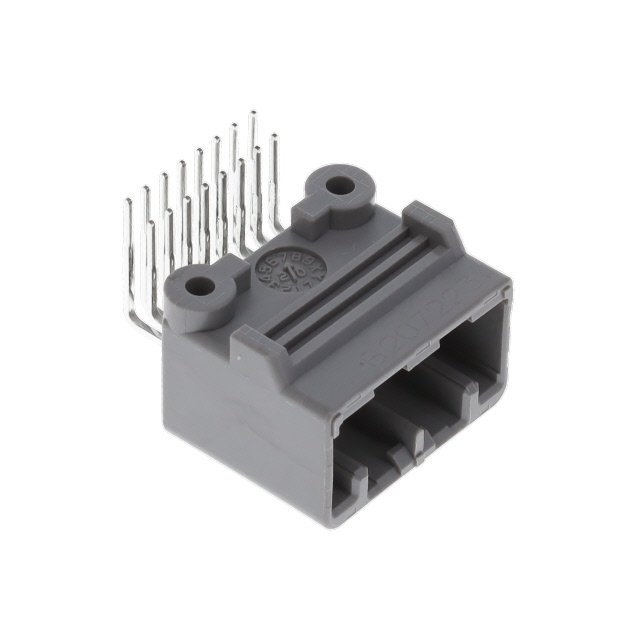

MX34016N Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PIN HEADER 16 POS R/A
| Part | Applications | Number of Positions Loaded | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Fastening Type | Contact Shape | Contact Length - Mating | Contact Length - Mating | Features | Style | Insulation Material | Contact Material | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Insulation Height | Insulation Height | Number of Positions | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Shrouding | Current Rating (Amps) | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | All | Solder | 85 °C | -40 C | Gray | Locking Ramp | Square | 0.303 in | 7.7 mm | Mounting Flange | Board to Cable/Wire | Glass Filled Syndiotactic Polystyrene (SPS) | Brass | Tin | 0.087 in | 2.2 mm | 2 | 0.626 in | 15.9 mm | 16 | Right Angle Through Hole | 0.118 in | 3 mm | Male Pin | Shrouded - 4 Wall | 3 A | Header | 0.126 " | 3.2 mm |
