PKU461 Series

Catalog

DC DC CONVERTER 3.3V 66W

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Features	Efficiency	Supplier Device Package	Power (Watts)	Voltage - Output 1	Applications	Voltage - Isolation	Package / Case	Mounting Type	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Standard Number	Number of Outputs	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1 [custom]
Flex Power Modules PKU4610ESI	20 A	75 V	Adjustable Output Remote On/Off	92.3 %	Sixteenth Brick	66 W	3.3 V	ITE (Commercial)	2250 VDC	Sixteenth Brick	Surface Mount	36 V	Isolated Module	105 C	-40 °C	CB CSA IEC TUV UL	62368-1	1	Active Low Enable	22.9 mm	1.3 in	0.35 in	0.9 in	8.9 mm	33 mm

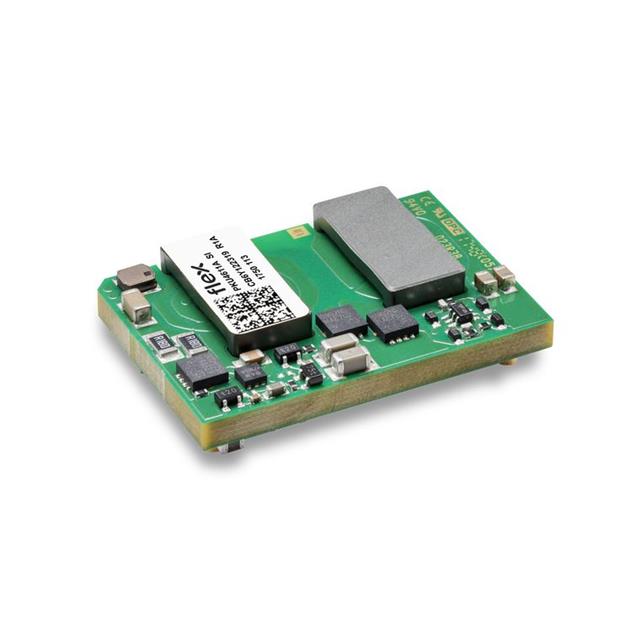

Flex Power Modules PKU4617VASI		75 V	PMBus™	94 %	Sixteenth Brick			ITE (Commercial)	2250 VDC	Sixteenth Brick	Surface Mount	36 V	Isolated Module Digital			CB CSA IEC TUV UL	62368-1	1		22.9 mm	1.3 in	0.33 in	0.9 in	8.4 mm	33 mm	6 V
Flex Power Modules PKU4619PI	25 A	75 V	Adjustable Output Remote On/Off Remote Sense	90.3 %	Sixteenth Brick	63 W	2.5 V	ITE (Commercial)	1.5 kV	Sixteenth Brick	Through Hole	36 V	Isolated Module	120 °C	-40 °C	CB CSA IEC TUV UL	62368-1	1	Active Low Enable	22.9 mm	1.3 in	0.35 in	0.9 in	8.8 mm	33 mm
Flex Power Modules PKU4611ASIP	12 A	60 V	Adjustable Output Remote On/Off	94 %	Sixteenth Brick	60 W	5 V	ITE (Commercial)	2250 VDC	Sixteenth Brick	Surface Mount	36 V	Isolated Module	125 °C	-40 °C	CB CSA IEC TUV UL	62368-1	1	Active High Enable	22.9 mm	1.3 in	0.33 in	0.9 in	8.4 mm	33 mm

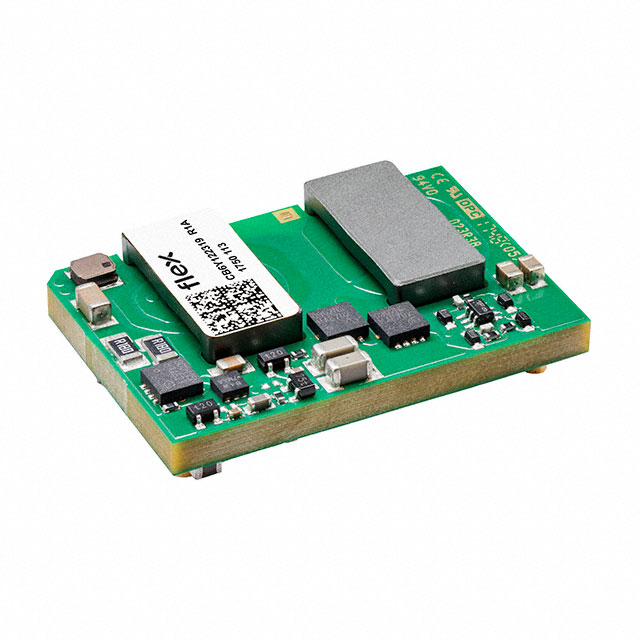

Flex Power Modules PKU4611ASI	12 A	60 V	Adjustable Output Remote On/Off	94 %	Sixteenth Brick	60 W	5 V	ITE (Commercial)	2250 VDC	Sixteenth Brick	Surface Mount	36 V	Isolated Module	125 °C	-40 °C	CB CSA IEC TUV UL	62368-1	1	Active Low Enable	22.9 mm	1.3 in	0.33 in	0.9 in	8.4 mm	33 mm
