292303 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN USB 2.0 TYPE A RCP 4 POS SOLDER RA SMD 4 TERMINAL 1 PORT BOX/TRAY
| Part | Gender | Specifications | Mounting Type | Number of Contacts [custom] | Voltage - Rated | Termination | Current Rating (Amps) | Connector Type | Material Flammability Rating | Insulation Color | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Shielding | Features | Contact Finish | Shell/Shielding Material | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Receptacle | USB 2.0 | Surface Mount Right Angle | 4 | 30 VAC | Solder | 1 A | USB-A (USB TYPE-A) | UL94 V-0 | Black | Horizontal | 85 °C | -55 °C | 1 | Shielded | Board Guide | Gold Gold-Palladium | Stainless Steel | 1500 |

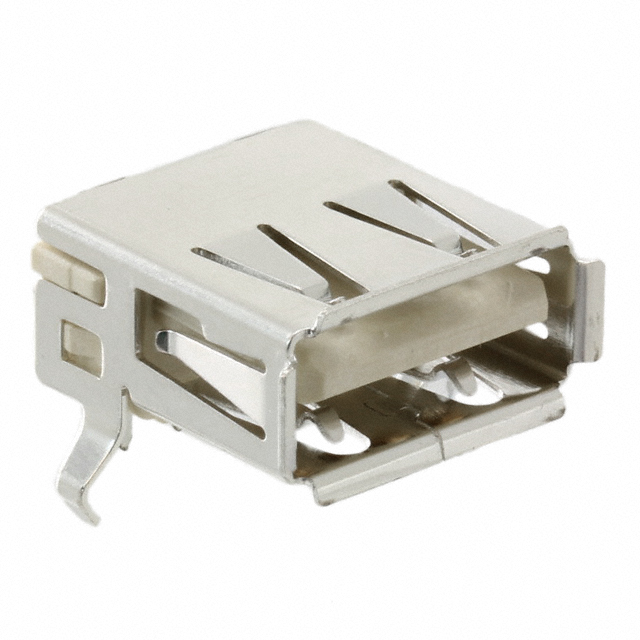

 TE Connectivity Raychem Cable Protection | Receptacle | USB 2.0 | Through Hole Right Angle | 4 | 30 VAC | Solder | 1 A | USB-A (USB TYPE-A) | UL94 V-0 | Natural | Horizontal | 85 °C | -55 °C | 1 | Shielded | Gold Gold-Palladium | Stainless Steel | 1500 | |

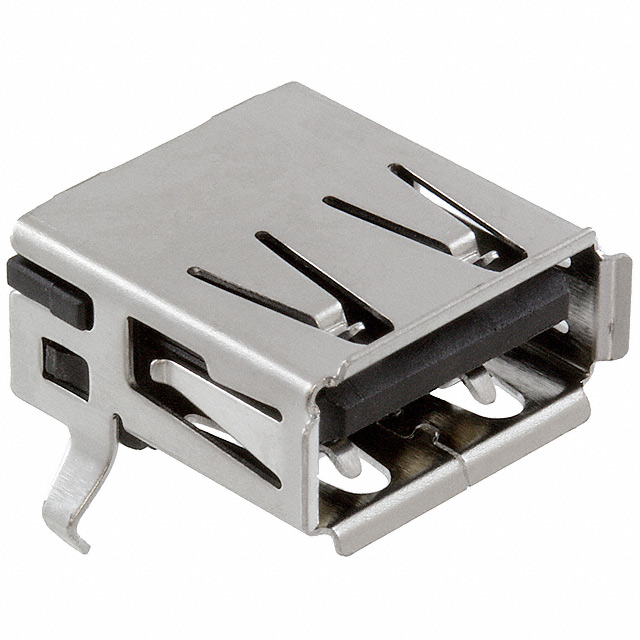

 TE Connectivity Raychem Cable Protection | Receptacle | USB 2.0 | Through Hole Right Angle | 4 | 30 VAC | Solder | 1 A | USB-A (USB TYPE-A) | UL94 V-0 | Black | Horizontal | 85 °C | -55 °C | 1 | Shielded | Gold Gold-Palladium | Stainless Steel | 1500 | |
TE Connectivity Raychem Cable Protection | Receptacle | USB 2.0 | Through Hole Right Angle | 4 | Solder | USB-A (USB TYPE-A) | Horizontal | ||||||||||||
 TE Connectivity Raychem Cable Protection | Receptacle | USB 2.0 | Through Hole Right Angle | 4 | 30 VAC | Solder | 1 A | USB-A (USB TYPE-A) | UL94 V-0 | Natural | Horizontal | 85 °C | -55 °C | 1 | Shielded | Gold Gold-Palladium | Stainless Steel | 1500 |
