953486 Series

Catalog

AUTOMOTIVE CONN, R/A HDR, 32POS, SOLDER ROHS COMPLIANT: YES

Part	Applications	Contact Length - Post	Contact Length - Post	Connector Type	Features	Contact Type	Contact Finish - Post	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Fastening Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Material	Insulation Color	Style	Mounting Type	Number of Rows [custom]

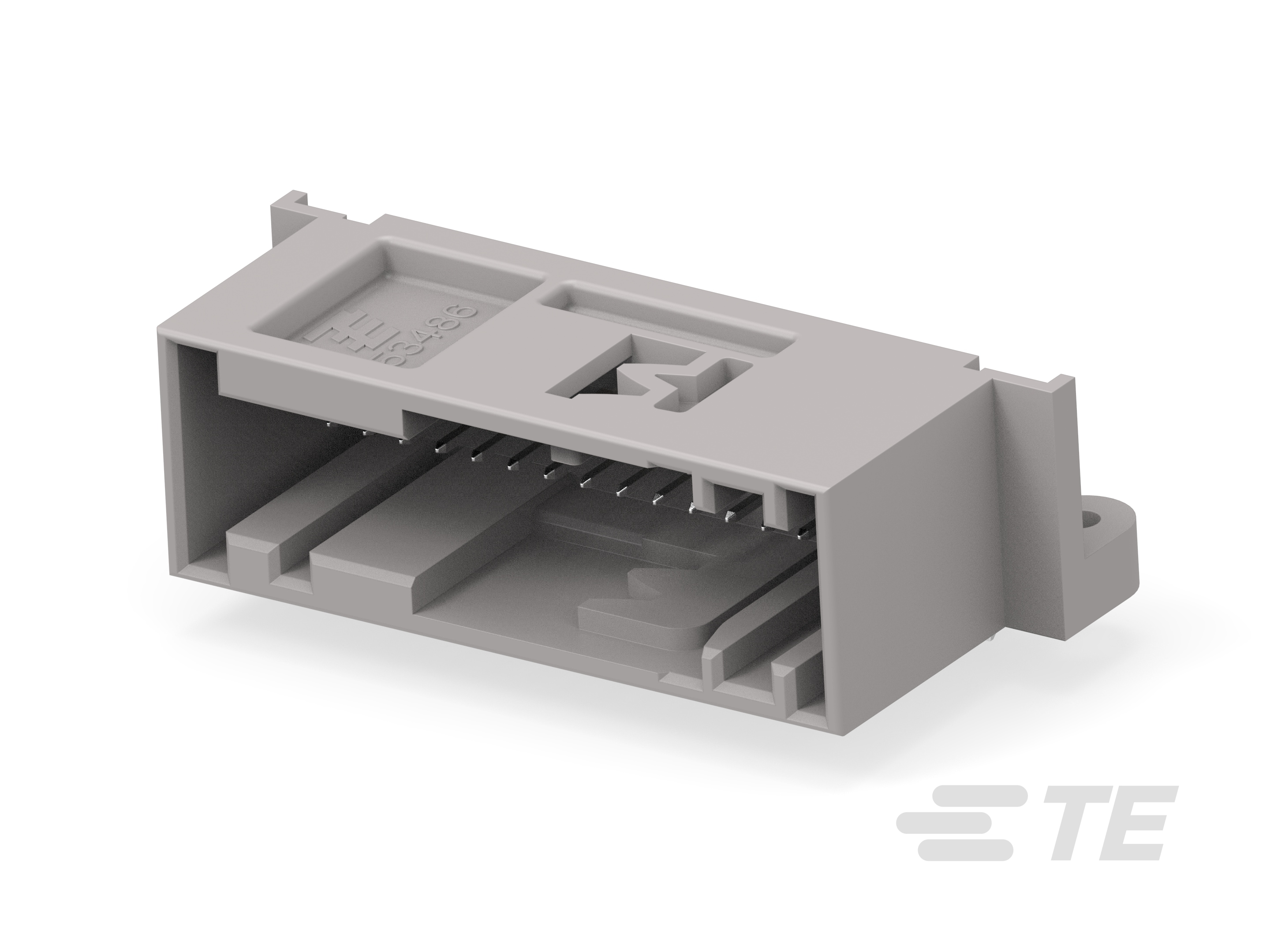

TE Connectivity AMP Connectors 953486-1	Automotive	0.138 in	3.5 mm	Header	Board Guide Mounting Flange	Male Pin	Tin	Solder	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	16 mm	0.63 in	All	Latch Holder	6.7 mm	0.264 in	Shrouded - 4 Wall	85 °C	-40 C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Gray	Board to Cable/Wire	Right Angle Through Hole	2
TE Connectivity AMP Connectors 953486-2	Automotive	0.138 in	3.5 mm	Header	Board Guide Mounting Flange	Male Pin	Tin	Solder	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	16 mm	0.63 in	All	Latch Holder	6.7 mm	0.264 in	Shrouded - 4 Wall	85 °C	-40 C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Blue	Board to Cable/Wire	Right Angle Through Hole	2
