SFAJL Series
Manufacturer: Knowles Syfer
Beta
⌘K

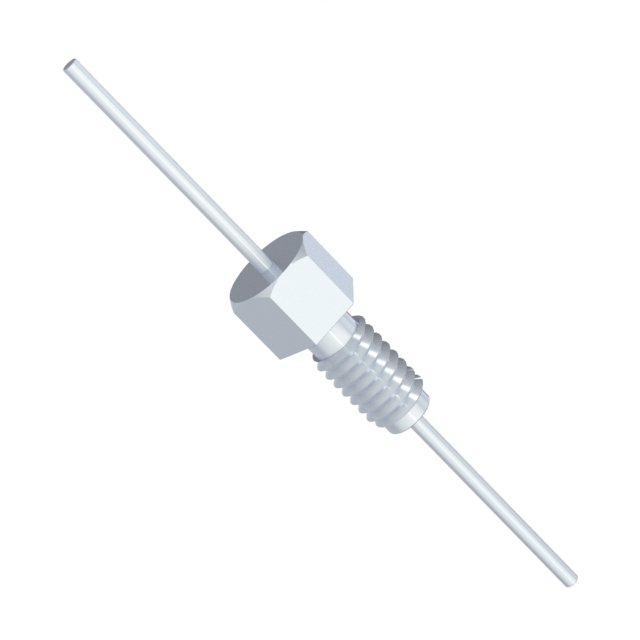

CAP FEEDTHRU 3300PF 500V AXIAL
| Part | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Insertion Loss | Temperature Coefficient | Package / Case | Current | Operating Temperature [Min] | Operating Temperature [Max] | Capacitance | Voltage - Rated | Thread Size | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Knowles Syfer | 9.2 mm | 4 mm | 0.362 in | 0.157 " | 35 dB | X7R | Axial Bushing | 10 A | -55 C | 125 °C | 0.0033 µF | 500 V | M3x0.5 | 20 % |
