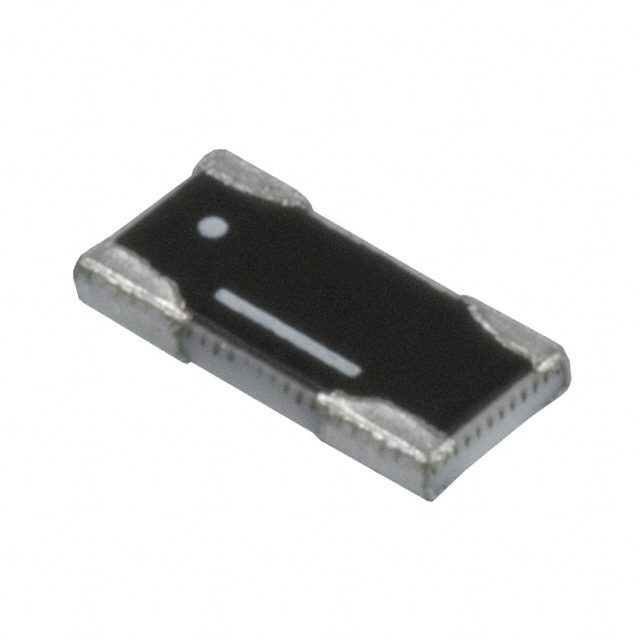

RM Series

Manufacturer: Susumu

Catalog

RESISTOR NETWORKS & ARRAYS 10K/10K 25V

Part	Number of Resistors	Number of Pins	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistance (Ohms)	Qualification	Tolerance	Package / Case	Circuit Type	Power Per Element	Grade	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Supplier Device Package	Resistance (Ohms) [custom]
Susumu RM2012A-103/103-PBVW10	2	4	25 ppm/°C	155 C	-55 C	2 mm	1.25 mm	0.049 "	0.079 in	10k	AEC-Q200	0.1 %	0805 (2012 Metric) Long Side Terminals	Voltage Divider	50 mW	Automotive	0.55 mm	0.022 in	Surface Mount	0805
Susumu RM3216A-102/253-PBVW10	2	4	25 ppm/°C	155 C	-55 C	3.2 mm	1.6 mm	0.063 "	0.126 "	1k 25k	AEC-Q200	0.1 %	1206 (3216 Metric) Long Side Terminals	Voltage Divider	83 mW	Automotive	0.55 mm	0.022 in	Surface Mount	1206
Susumu RM3216A-102/103-PBVW10	2	4	25 ppm/°C	155 C	-55 C	3.2 mm	1.6 mm	0.063 "	0.126 "		AEC-Q200	0.1 %	1206 (3216 Metric) Long Side Terminals	Voltage Divider	83 mW	Automotive	0.55 mm	0.022 in	Surface Mount	1206	1 kOhms 10 kOhms
Susumu RM3216B-103/303-PBVW10	2	4	25 ppm/°C	155 C	-55 C	3.2 mm	1.6 mm	0.063 "	0.126 "	10k 30k	AEC-Q200	0.1 %	1206 (3216 Metric) Long Side Terminals	Isolated	83 mW	Automotive	0.55 mm	0.022 in	Surface Mount	1206
Susumu RM2012A-103/903-PBVW10	2	4	25 ppm/°C	155 C	-55 C	2 mm	1.25 mm	0.049 "	0.079 in	10k 90k	AEC-Q200	0.1 %	0805 (2012 Metric) Long Side Terminals	Voltage Divider	50 mW	Automotive	0.55 mm	0.022 in	Surface Mount	0805
Susumu RM3216A-102/902-PBVW10	2	4	25 ppm/°C	155 C	-55 C	3.2 mm	1.6 mm	0.063 "	0.126 "		AEC-Q200	0.1 %	1206 (3216 Metric) Long Side Terminals	Voltage Divider	83 mW	Automotive	0.55 mm	0.022 in	Surface Mount	1206	1 kOhms 9 kOhms
Susumu RM3216A-202/503-PBVW10	2	4	25 ppm/°C	155 C	-55 C	3.2 mm	1.6 mm	0.063 "	0.126 "		AEC-Q200	0.1 %	1206 (3216 Metric) Long Side Terminals	Voltage Divider	83 mW	Automotive	0.55 mm	0.022 in	Surface Mount	1206	2 kOhms 50 kOhms
Susumu RM2012A-102/602-PBVW10	2	4	25 ppm/°C	155 C	-55 C	2 mm	1.25 mm	0.049 "	0.079 in		AEC-Q200	0.1 %	0805 (2012 Metric) Long Side Terminals	Voltage Divider	50 mW	Automotive	0.55 mm	0.022 in	Surface Mount	0805	1 kOhms 6 kOhms
Susumu RM2012B-202/503-PBVW10	2	4	25 ppm/°C	155 C	-55 C	2 mm	1.25 mm	0.049 "	0.079 in		AEC-Q200	0.1 %	0805 (2012 Metric) Long Side Terminals	Isolated	50 mW	Automotive	0.55 mm	0.022 in	Surface Mount	0805	2 kOhms 50 kOhms
Susumu RM3216B-102/602-PBVW10	2	4	25 ppm/°C	155 C	-55 C	3.2 mm	1.6 mm	0.063 "	0.126 "		AEC-Q200	0.1 %	1206 (3216 Metric) Long Side Terminals	Isolated	83 mW	Automotive	0.55 mm	0.022 in	Surface Mount	1206	1 kOhms 6 kOhms
