10SVQP Series

Catalog

CAPACITOR: POLYMER; 150UF; 10VDC; SMD; OS-CON SVQP; ±20%; Ø8X7MM

Part	Capacitance	Tolerance	Applications	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Package / Case	Mounting Type	Type	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max)
Panasonic Electronic Components 10SVQP150M	150 µF	20 %	General Purpose	10 V	-55 C	125 °C	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	Surface Mount	Polymer	35 mOhms	1000 Hrs	0.276 in	7 mm	2.56 A	128 mA	0.315 in	8 mm

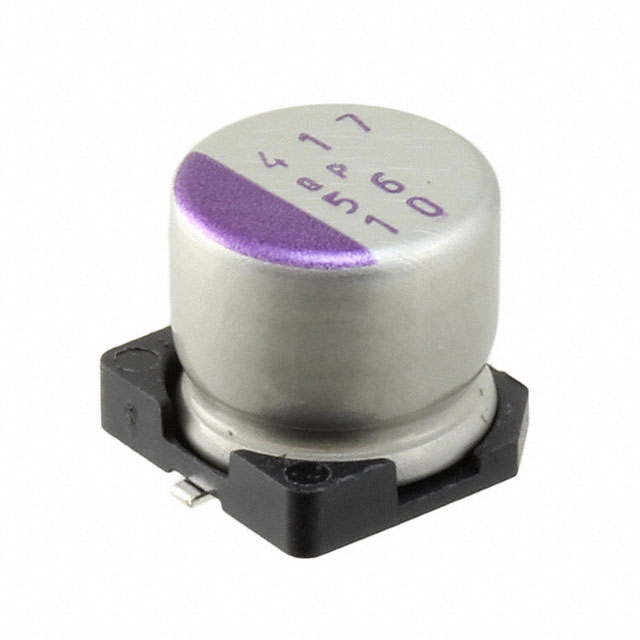

Panasonic Electronic Components 10SVQP56M	56 µF	20 %	General Purpose	10 V	-55 C	125 °C	6.6 mm	6.6 mm	0.26 in	0.26 in	Radial Can - SMD	Surface Mount	Polymer	45 mOhm	1000 Hrs	0.236 "		1.7 A	85 mA	0.248 "	6.3 mm	6 mm
Panasonic Electronic Components 10SVQP120M	120 µF	20 %	General Purpose	10 V	-55 C	125 °C	8.3 mm	8.3 mm	0.327 in	0.327 in	Radial Can - SMD	Surface Mount	Polymer	35 mOhms	1000 Hrs	0.276 in	7 mm	2.56 A	128 mA	0.315 in	8 mm
