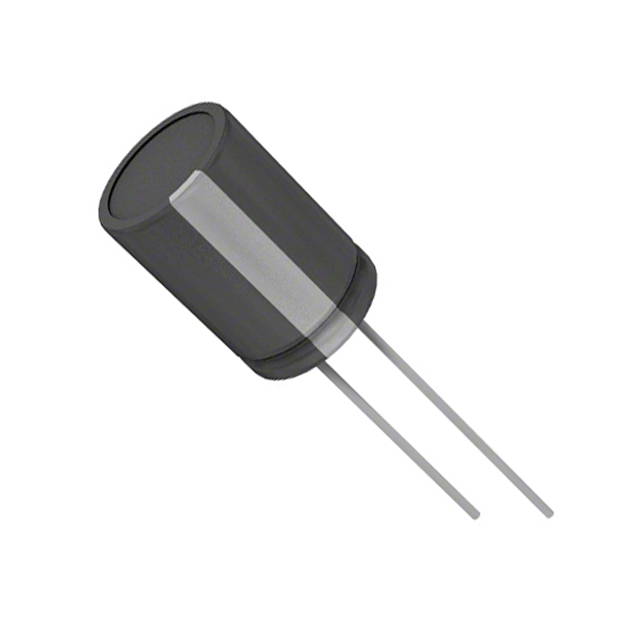

LLE Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LONG LIFE ELECTROLYTIC CAPACITORS

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Voltage - Rated	Applications	Capacitance	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Polarization	Tolerance	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Package / Case	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

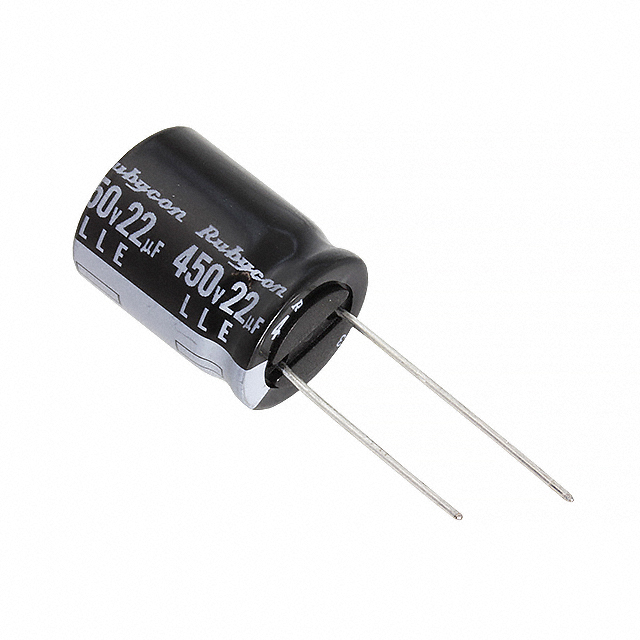

Rubycon 450LLE22MEFC16X20	0.63 in	16 mm	20000 Hrs	450 V	General Purpose	22 µF	0.866 in	22 mm	105 ░C	-25 °C	0.295 in	7.5 mm	Polar	20 %	730 mA	292 mA	Can Radial	Through Hole
Rubycon 400LLE3R3MEFC8X11.5	0.315 in	8 mm	15000 Hrs	400 V	General Purpose	3.3 µF			105 ░C	-40 C	0.138 in	3.5 mm	Polar	20 %			Can Radial	Through Hole	0.512 "	13 mm
Rubycon 400LLE2R7MEFC8X11.5	0.315 in	8 mm	15000 Hrs	400 V	General Purpose	2.7 µF			105 ░C	-40 C	0.138 in	3.5 mm	Polar	20 %	86 mA	43 mA	Can Radial	Through Hole			0.531 in	13.5 mm
Rubycon 200LLE8R2MEFC8X9	0.315 in	8 mm	12000 Hrs	200 VDC	General Purpose	8.2 µF			105 ░C	-40 C	0.138 in	3.5 mm	Polar	20 %	125 mA	66 mA	Can Radial	Through Hole	0.433 in	11 mm
