CLU7S3 Series
Manufacturer: Citizen Finedevice Co Ltd
Beta
⌘K

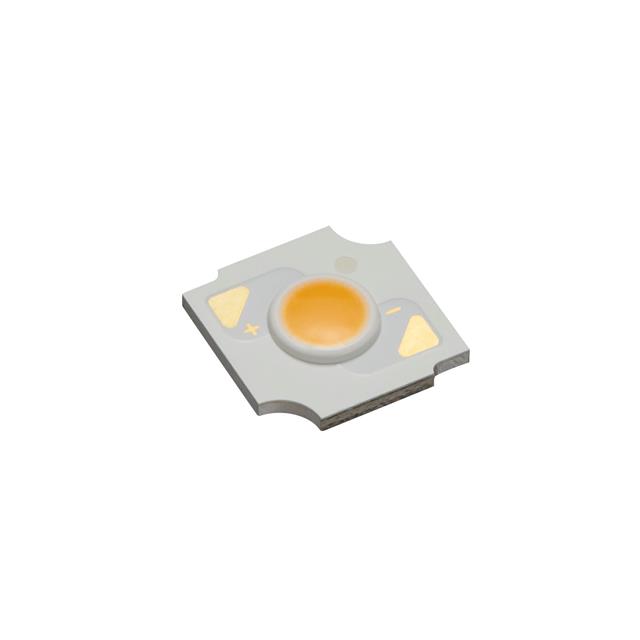

LED COB CLU7S3 WARM WHT SQ 2400K
| Part | Height [z] | Current - Max [Max] | Configuration | Voltage - Forward (Vf) (Typ) | Size / Dimension [y] | Size / Dimension [x] | CRI (Color Rendering Index) | Type | Temperature - Test | Color | Features | Luminous Flux @ Current/Temperature | Lumens/Watt @ Current - Test | Current - Test | Lens Type | Light Emitting Surface (LES) [diameter] | CCT (K) | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Citizen Finedevice Co Ltd | 1.4 mm | 750 mA | Square | 12.2 V | 9.5 mm | 9.5 mm | 90 | Chip On Board (COB) | 85 °C | Warm White | With Connector | 620 lm | 91 lm/W | 525 mA | Flat | 3.5 mm | 3-Step MacAdam Ellipse | 2400 K |
