RT Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

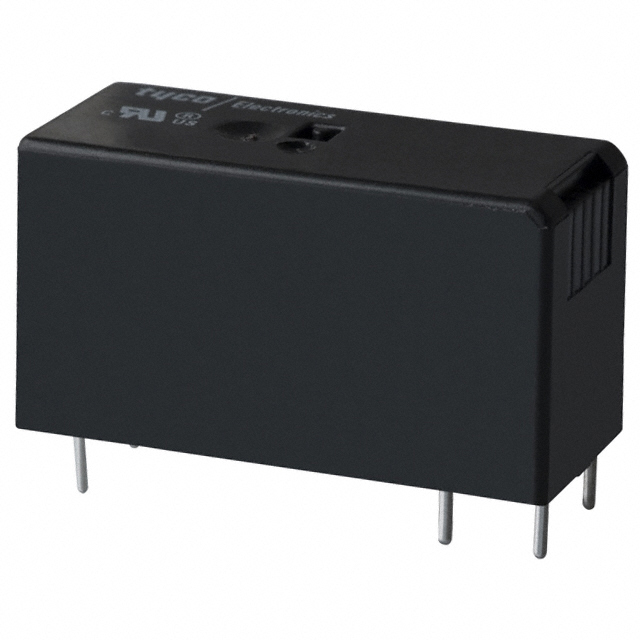

GENERAL PURPOSE RELAYS DPDT 8A 18VDC PCB
| Part | Coil Resistance | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Contact Form | Relay Type | Seal Rating | Contact Material | Approval Agency | Release Time | Switching Voltage [Max] | Coil Type | Coil Insulation | Termination Style | Mounting Type | Must Operate Voltage | Must Release Voltage | Coil Current | Contact Rating (Current) | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 810 Ohms | 8 ms | 85 °C | -40 C | 18 VDC | DPDT (2 Form C) | General Purpose | Sealed - Fully | Silver Nickel (AgNi) | CQC CSA cURus VDE | 6 ms | 400 VAC | Non Latching | Class F | PC Pin | Through Hole | 12.6 VDC | 1.8 VDC | 22.2 mA | 8 A | 3200 VA |
