ODB600PT Series

Catalog

FAN BLOWER, 120MM, 22CFM, 12VDC ROHS COMPLIANT: YES

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Frame	Static Pressure	Static Pressure	Termination	RPM	Noise	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Bearing Type	Air Flow	Air Flow
ORION FANS ODB600-12MB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	8 V	14 V	0.47 A	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.47 in H2O	117.1 Pa	2 Wire Leads	2500 RPM	42 dB	Square/Rounded	120.5 mm	120.5 mm	12 VDC	32 mm	80 °C	-20 ░C	Blower	Ball	25 CFM	0.7 mł/min

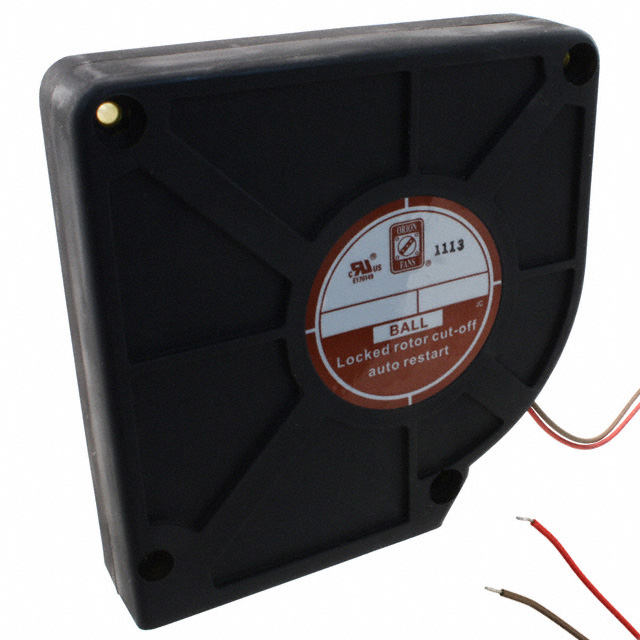

ORION FANS ODB600-48HB		18 VDC	53 VDC	150 mA		0.59 in H2O	147 Pa	2 Wire Leads	3000 RPM	49 dB	Square/Rounded	120.5 mm	120.5 mm	48 VDC	32 mm	80 °C	-20 ░C	Blower	Ball	35 CFM	0.98 m³/min
ORION FANS ODB600-24HB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	10 VDC	29 VDC	0.37 A	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.59 in H2O	147 Pa	2 Wire Leads	3000 RPM	49 dB	Square/Rounded	120.5 mm	120.5 mm	24 VDC	32 mm	80 °C	-20 ░C	Blower	Ball	35 CFM	0.98 m³/min

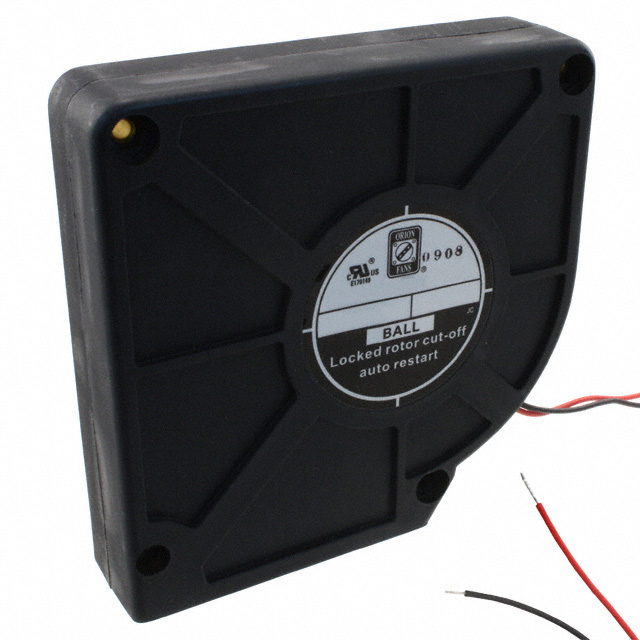

ORION FANS ODB600-24MB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	10 VDC	29 VDC	0.3 A	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.47 in H2O	117.1 Pa	2 Wire Leads	2500 RPM	42 dB	Square/Rounded	120.5 mm	120.5 mm	24 VDC	32 mm	80 °C	-20 ░C	Blower	Ball	25 CFM	0.7 mł/min

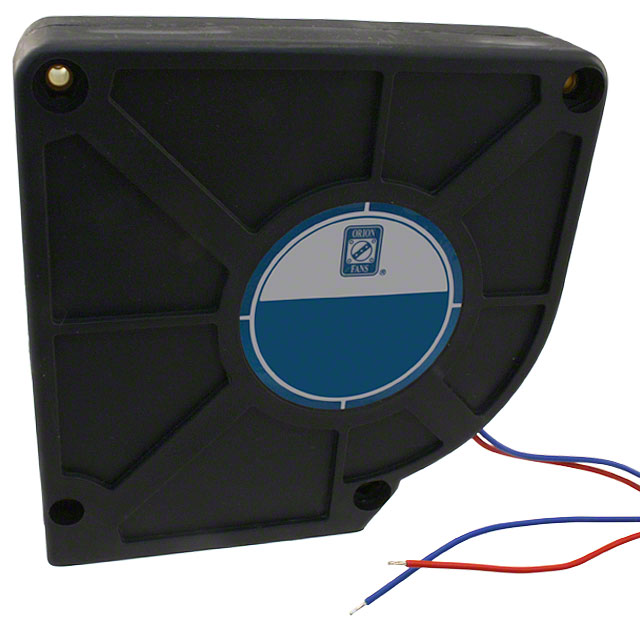

ORION FANS ODB600-12LB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	8 V	14 V	0.2 A	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.39 in H2O	97.1 Pa	2 Wire Leads	1800 RPM	30 dB	Square/Rounded	120.5 mm	120.5 mm	12 VDC	32 mm	80 °C	-20 ░C	Blower	Ball	20 CFM	0.56 m³/min

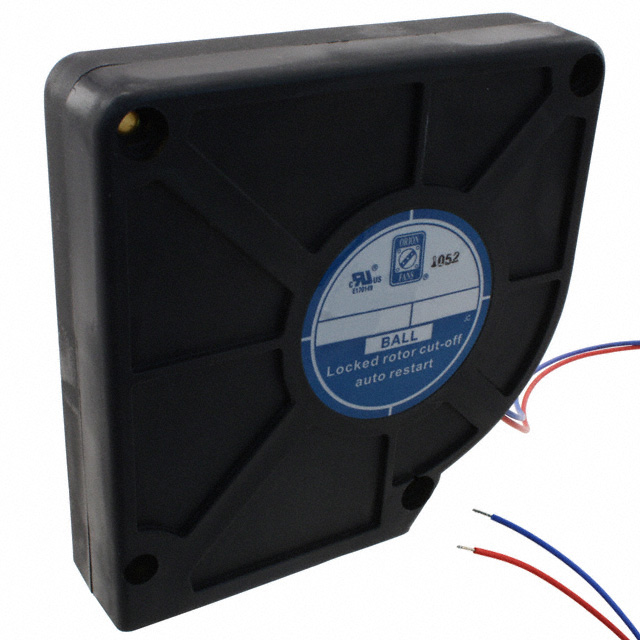

ORION FANS ODB600-12HB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	8 V	14 V	600 mA	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.59 in H2O	147 Pa	2 Wire Leads	3000 RPM	49 dB	Square/Rounded	120.5 mm	120.5 mm	12 VDC	32 mm	80 °C	-20 ░C	Blower	Ball	35 CFM	0.98 m³/min
