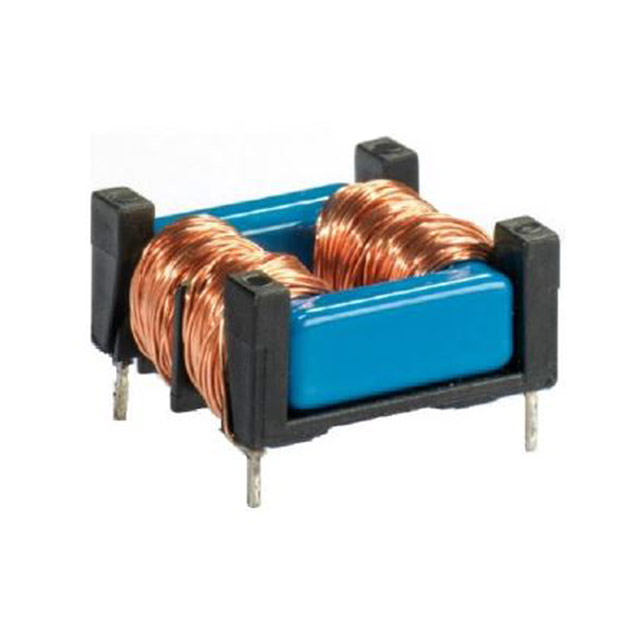

CMF Series
Manufacturer: Triad Magnetics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
INDUCTOR KITS & ACCESSORIES CMF16K - COMMON MODE CHOKE KIT. EACH KIT CONTAINS 3 PIECES OF THE FOLLOWING PARTS: CMF16-103161,CMF16-153131,CMF16-273900,CMF16-393800,CMF16-473700,CMF16-683600,CMF16-104450
| Part | Kit Type | Mounting Type | Packages Included | Package Pin Count | Quantity Values | Quantity per Value | Quantity | DC Resistance (DCR) (Max) | Filter Type | Size / Dimension Width | Size / Dimension Length | Inductance | Package Leads | Package / Case | Package Name | Current Rating (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Number of Lines | Height (Max) | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Triad Magnetics | Common Mode Chokes | Through Hole | 4 PC Pin Horizontal | 4 pin | 7 Values | 3 Each | 21 pcs | ||||||||||||||
 Triad Magnetics | Through Hole | 1.21 Ohm | Power Line | 0.976 in | 1.043 in | 68 mH | 4 Leads | 4 PC Pin Vertical | Vertical | 900 mA | -40 °C | 105 °C | 2 | 0.551 in | 300 V |
