TPS611 Series

Catalog

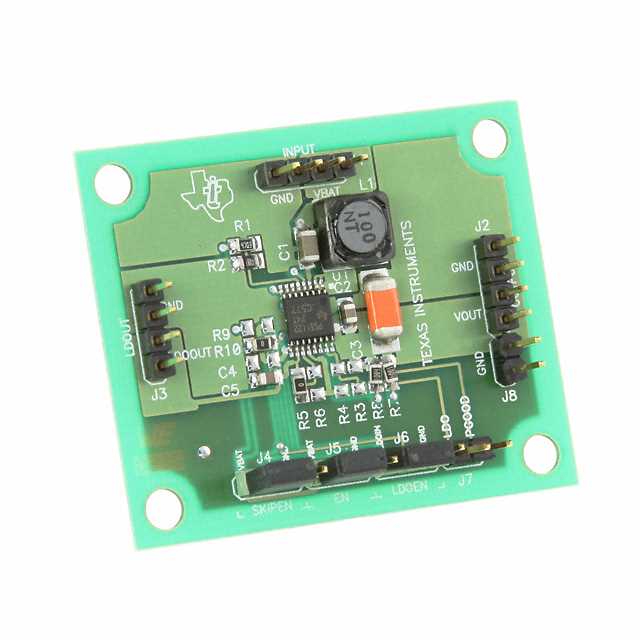

TPS61122 DC TO DC CONVERTER AND SWITCHING REGULATOR CHIP 3.3V/3.6V OUTPUT EVALUATION BOARD

Part	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Main Purpose	Contents	Current - Output	Utilized IC / Part
Texas Instruments TPS61122EVM-205	Fully Populated	2	2 Non-Isolated Outputs Non-Isolated	Board(s)	3.3 V 3.6 V	1.8 V	5.5 V	Boost	DC/DC Step Up with LDO	Board(s)	0.2 A 250 mA	TPS61122
Texas Instruments TPS61106EVM-216	Fully Populated	2	2 Non-Isolated Outputs Non-Isolated	Board(s)	1.5 V 3.3 V	0.9 V	3.6 V	Boost	DC/DC Step Up with LDO	Board(s)	120 mA 250 mA	TPS61106
Texas Instruments TPS61130EVM-206	Fully Populated	2	2 Non-Isolated Outputs Non-Isolated	Board(s)	1.5 V 3.3 V	3 V	4.2 V	Buck-Boost	DC/DC Step Up or Down with LDO	Board(s)	0.2 A 300 mA	TPS61130
Texas Instruments TPS61100EVM-216	Fully Populated	2	2 Non-Isolated Outputs Non-Isolated	Board(s)	1.5 V 3.3 V	0.9 V	3.6 V	Boost	DC/DC Step Up with LDO	Board(s)	120 mA 250 mA	TPS61100
