MMS-50 Series

Catalog

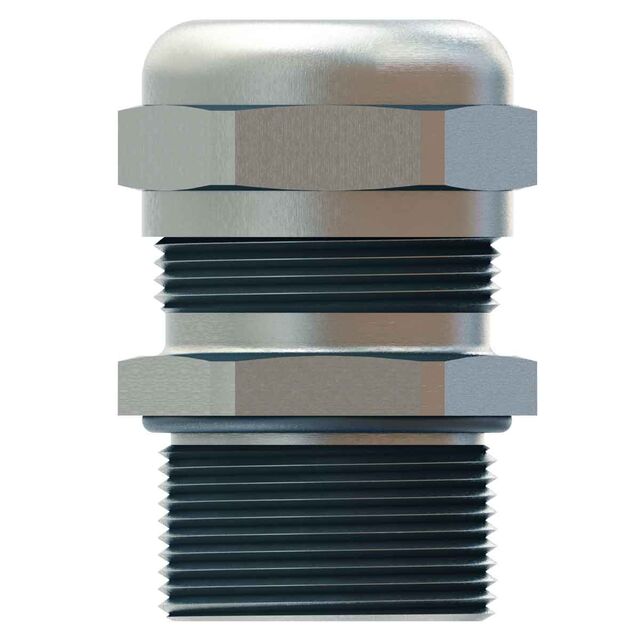

CABLE GLAND 27-44MM M50 BRASS

Part	Material	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Ingress Protection	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Color	Type	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Thread Size
SAB North America MMS-50C	Brass Nickel Plated	27 mm	1.063 in	IP68 - Dust Tight Waterproof	O-Ring	-20 ░C	100 °C	Silver	Cable Gland	1.969 in	50 mm	44 mm	1.732 in	0.591 in	15 mm	M50x1.5
