TB007 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
TERMINAL BLOCK, SCREW TYPE, 5.08
| Part | Positions Per Level | Color | Number of Levels | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Wire Termination | Features | Voltage | Pitch | Pitch | Current | Mounting Type | Positions Per Level [custom] | Contact Material - Plating | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Screw Material - Plating | Clamp Material - Plating [custom] | Clamp Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

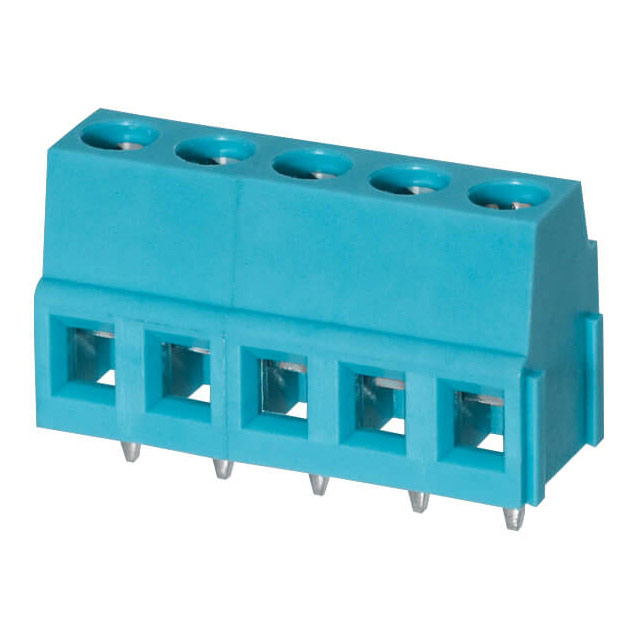

 Same Sky (Formerly CUI Devices) | 5 | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | ||||||||||
 Same Sky (Formerly CUI Devices) | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | 7 | ||||||||||
 Same Sky (Formerly CUI Devices) | 16 | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | Copper Alloy - Tin Plated | 4.4 Lb-In | 0.5 Nm | -40 C | 105 ░C | M3 | Steel - Zinc Plated | Nickel Plated | Copper Alloy | |
 Same Sky (Formerly CUI Devices) | 13 | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | ||||||||||
Same Sky (Formerly CUI Devices) | 18 | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | Copper Alloy - Tin Plated | 4.4 Lb-In | 0.5 Nm | -40 C | 105 ░C | M3 | Steel - Zinc Plated | Nickel Plated | Copper Alloy | |
Same Sky (Formerly CUI Devices) | 23 | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | ||||||||||
Same Sky (Formerly CUI Devices) | 21 | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | Copper Alloy - Tin Plated | 4.4 Lb-In | 0.5 Nm | -40 C | 105 ░C | M3 | Steel - Zinc Plated | Nickel Plated | Copper Alloy | |
Same Sky (Formerly CUI Devices) | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | 7 | Copper Alloy - Tin Plated | 4.4 Lb-In | 0.5 Nm | -40 C | 105 ░C | M3 | Steel - Zinc Plated | Nickel Plated | Copper Alloy | |
 Same Sky (Formerly CUI Devices) | 9 | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | ||||||||||
Same Sky (Formerly CUI Devices) | 20 | Blue | 1 | 24 AWG | 12 AWG | Horizontal with Board | Screw - Rising Cage Clamp | Interlocking (Side) | 300 VDC | 5.08 mm | 0.2 in | 16 A | Through Hole | Copper Alloy - Tin Plated | 4.4 Lb-In | 0.5 Nm | -40 C | 105 ░C | M3 | Steel - Zinc Plated | Nickel Plated | Copper Alloy |
