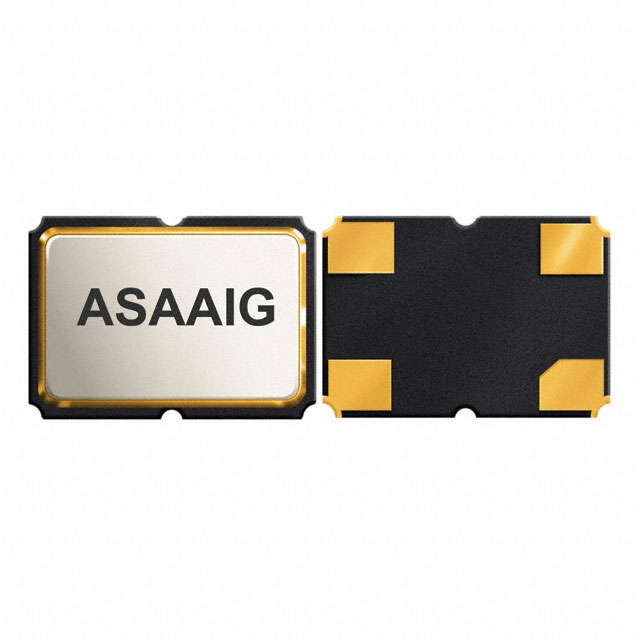

ASAAIG Series

Catalog

STANDARD CLOCK OSCILLATORS CRYSTAL OSCILLATOR 2016 4-SMD 32MHZ +/-50PPM -40°C ~ 125°C CMOS 3.3V

Part	Current - Supply (Disable) (Max) [Max]	Frequency Stability	Mounting Type	Frequency	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package [custom]	Output	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Function	Height - Seated (Max) [Max]	Height - Seated (Max)	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Ratings	Type	Base Resonator [custom]	Current - Supply (Max) [Max]
Abracon LLC ASAAIG-32.000MHZ-K-C-S-T	10 µA	50 ppm	Surface Mount	32 MHz	1.6	2	4-SMD	CMOS	1.6 mm	0.079 in	0.063 "	2 mm	Enable/Disable	0.031 in	0.8 mm	3.3 V	125 °C	-40 C	4-SMD No Lead	AEC-Q200	XO (Standard)	Crystal	10 mA
Abracon LLC ASAAIG-48.000MHZ-C-S-T	10 µA	50 ppm	Surface Mount	48 MHz	1.6	2	4-SMD	CMOS	1.6 mm	0.079 in	0.063 "	2 mm	Enable/Disable	0.031 in	0.8 mm	3.3 V	105 ░C	-40 C	4-SMD No Lead	AEC-Q200	XO (Standard)	Crystal	10 mA
Abracon LLC ASAAIG-24.000MHZ-K-C-S-T	10 µA	50 ppm	Surface Mount	24 MHz	1.6	2	4-SMD	CMOS	1.6 mm	0.079 in	0.063 "	2 mm	Enable/Disable	0.031 in	0.8 mm	3.3 V	125 °C	-40 C	4-SMD No Lead	AEC-Q200	XO (Standard)	Crystal	10 mA
