CLF-H Series

Catalog

POWER INDUCTORS - SMD 3.3UH 11MOHMS 6.6A AUTOMOTIVE (125C)

Part	Type	Inductance	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Package / Case	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Current - Saturation (Isat)	Shielding	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TDK Corporation CLF10040T-3R3N-H	Drum Core Wirewound	3.3 µH	6.6 A	4.1 mm	0.161 in	Surface Mount	Nonstandard	Ferrite	0.394 in	9.7 mm	0.382 in	10 mm	100 kHz	125 °C	-40 C	11 mOhm	4.8 A	Shielded	30 %
TDK Corporation CLF6045T-331M-H	Drum Core Wirewound	330 µH	0.44 A			Surface Mount	Nonstandard	Ferrite	0.244 "	5.9 mm	0.232 in	6.2 mm	100 kHz	125 °C	-40 C	970 mOhm	350 mA	Shielded	20 %	4.5 mm	0.177 in

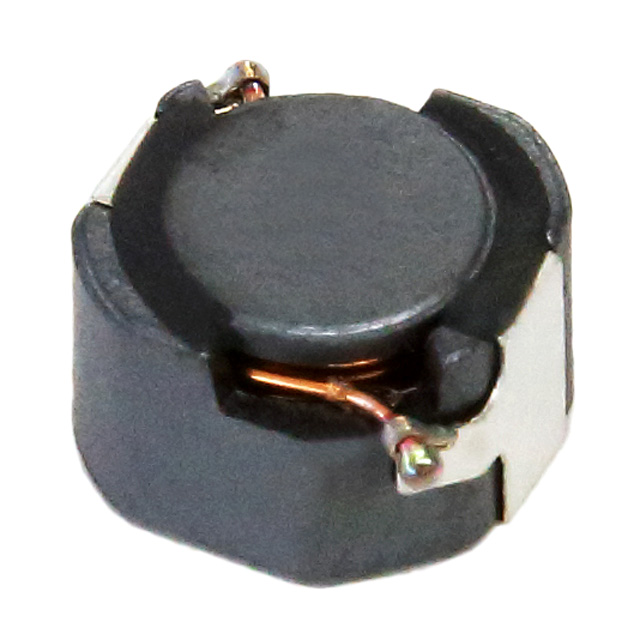

TDK Corporation CLF7045T-1R5N-H	Drum Core Wirewound	1.5 µH	7.3 A			Surface Mount	Nonstandard	Ferrite	0.283 "	6.9 mm	0.272 in	7.2 mm	100 kHz	125 °C	-40 C	11 mOhm	4.9 A	Shielded	30 %	4.5 mm	0.177 in
TDK Corporation CLF7045T-3R3N-H	Drum Core Wirewound	3.3 µH	5 A			Surface Mount	Nonstandard	Ferrite	0.283 "	6.9 mm	0.272 in	7.2 mm	100 kHz	125 °C	-40 C	16.4 mOhm	4.1 A	Shielded	30 %	4.5 mm	0.177 in
TDK Corporation CLF7045T-150M-H	Drum Core Wirewound	15 µH	2.3 A			Surface Mount	Nonstandard	Ferrite	0.283 "	6.9 mm	0.272 in	7.2 mm	100 kHz	125 °C	-40 C	51 mOhm	2.1 A	Shielded	20 %	4.5 mm	0.177 in
TDK Corporation CLF10040T-680M-H	Drum Core Wirewound	68 µH	1.6 A	4.1 mm	0.161 in	Surface Mount	Nonstandard	Ferrite	0.394 in	9.7 mm	0.382 in	10 mm	100 kHz	125 °C	-40 C	180 mOhm	1.1 A	Shielded	20 %
