YB15SK Series

Catalog

SHORT BODY PUSHBUTTON/SPOT ILLUM

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Current Rating (Amps)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Illumination Voltage (Nominal)	Termination Style	Actuator Marking	Actuator Type	Voltage Rating - AC	Features	Color - Actuator/Cap	Illumination Type, Color	Mounting Type
NKK Switches YB15SKG01-1C02-JB	1000000 Cycles	100000 Cycles	28 V	0.4 VA	Illuminated Standard	50 °C	-25 °C	On-Mom	16 mm	SPDT	1.9 VDC	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	28 V	Tactile Feedback	Clear	LED Red	Panel Mount Front

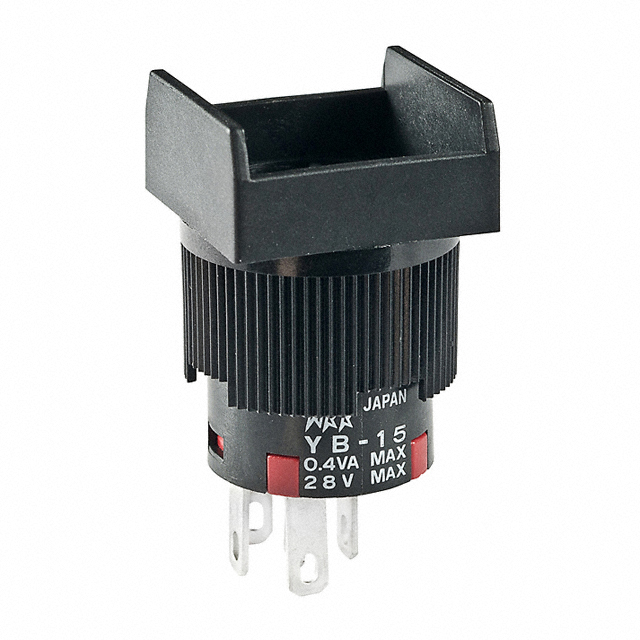

NKK Switches YB15SKG01	1000000 Cycles	100000 Cycles	28 V	0.4 VA	Standard	70 °C	-25 °C	On-Mom	16 mm	SPDT		Solder Quick Connect - 0.110" (2.8mm)	No Marking	Plunger for Cap	28 V	Tactile Feedback			Panel Mount Front
NKK Switches YB15SKG01-EB	1000000 Cycles	100000 Cycles	28 V	0.4 VA	Standard	70 °C	-25 °C	On-Mom	16 mm	SPDT		Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	28 V	Tactile Feedback	Yellow		Panel Mount Front

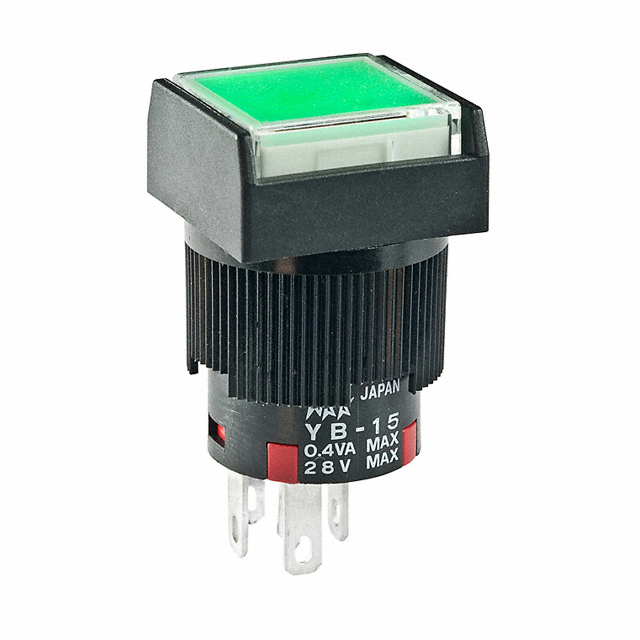

NKK Switches YB15SKG01-5F-JB	1000000 Cycles	100000 Cycles	28 V	0.4 VA	Illuminated Standard	50 °C	-25 °C	On-Mom	16 mm	SPDT	2.2 VDC	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	28 V	Tactile Feedback	Clear	Green LED	Panel Mount Front

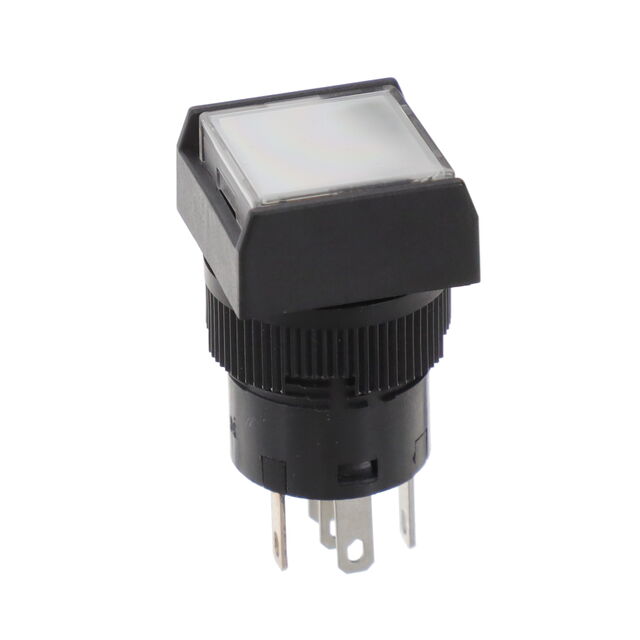

NKK Switches YB15SKW01-5D24-JB	1000000 Cycles	100000 Cycles	30 V	3 A	Illuminated Standard	50 °C	-25 °C	On-Mom	16 mm	SPDT	24 V	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	125 V	Tactile Feedback	Clear	Amber LED	Panel Mount Front
NKK Switches YB15SKG01-1F05-JA	1000000 Cycles	100000 Cycles	28 V	0.4 VA	Illuminated Standard	50 °C	-25 °C	On-Mom	16 mm	SPDT	5 VDC	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	28 V	Tactile Feedback	Clear	Green LED	Panel Mount Front
NKK Switches YB15SKW01-1D24-JB	1000000 Cycles	100000 Cycles	30 V	3 A	Illuminated Standard	50 °C	-25 °C	On-Mom	16 mm	SPDT	24 V	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	125 V	Tactile Feedback	Clear	Amber LED	Panel Mount Front
NKK Switches YB15SKW01-1F02-JF	1000000 Cycles	100000 Cycles	30 V	3 A	Illuminated Standard	50 °C	-25 °C	On-Mom	16 mm	SPDT	2 VDC	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	125 V	Tactile Feedback	Clear	Green LED	Panel Mount Front
NKK Switches YB15SKG01-5F-JF	1000000 Cycles	100000 Cycles	28 V	0.4 VA	Illuminated Standard	50 °C	-25 °C	On-Mom	16 mm	SPDT	2.2 VDC	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	28 V	Tactile Feedback	Clear	Green LED	Panel Mount Front
NKK Switches YB15SKW01-2CF02-JB	1000000 Cycles	100000 Cycles	30 V	3 A	Illuminated Standard	50 °C	-25 °C	On-Mom	16 mm	SPDT	2 VDC	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	125 V	Tactile Feedback	Clear	Green/Red LED	Panel Mount Front
