CONSMA Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SMA JACK 50 OHM PCB THROUGH HOLE
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Center Contact Plating | Shield Termination | Center Contact Material | Impedance | Frequency - Max [Max] | Number of Ports | Mounting Type | Contact Termination | Fastening Type | Housing Color | Connector Type | Connector Style | Voltage Rating | Mounting Feature | Features | Includes | Cable Group | Convert From (Adapter End) | Adapter Series | Convert To (Adapter End) | Adapter Type | Conversion Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Nickel | 500 | Gold | Solder | Beryllium Copper | 50 Ohms | 12.4 GHz | 1 | Through Hole | Solder | Threaded | Silver | Receptacle Female Socket | SMA | |||||||||||
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 155 C | Gold | 500 | Gold | Solder | Beryllium Copper | 50 Ohms | 18 GHz | 1 | Panel Mount | Solder | Threaded | Gold | Female Socket Jack | SMA | 1500 V | Flange | Extended Insulation | ||||||||
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Nickel | 500 | Gold | Solder | Beryllium Copper | 50 Ohms | 18 GHz | 1 | Board Edge End Launch Panel Mount | Solder | Threaded | Silver | Receptacle Female Socket | SMA | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | |||||||||

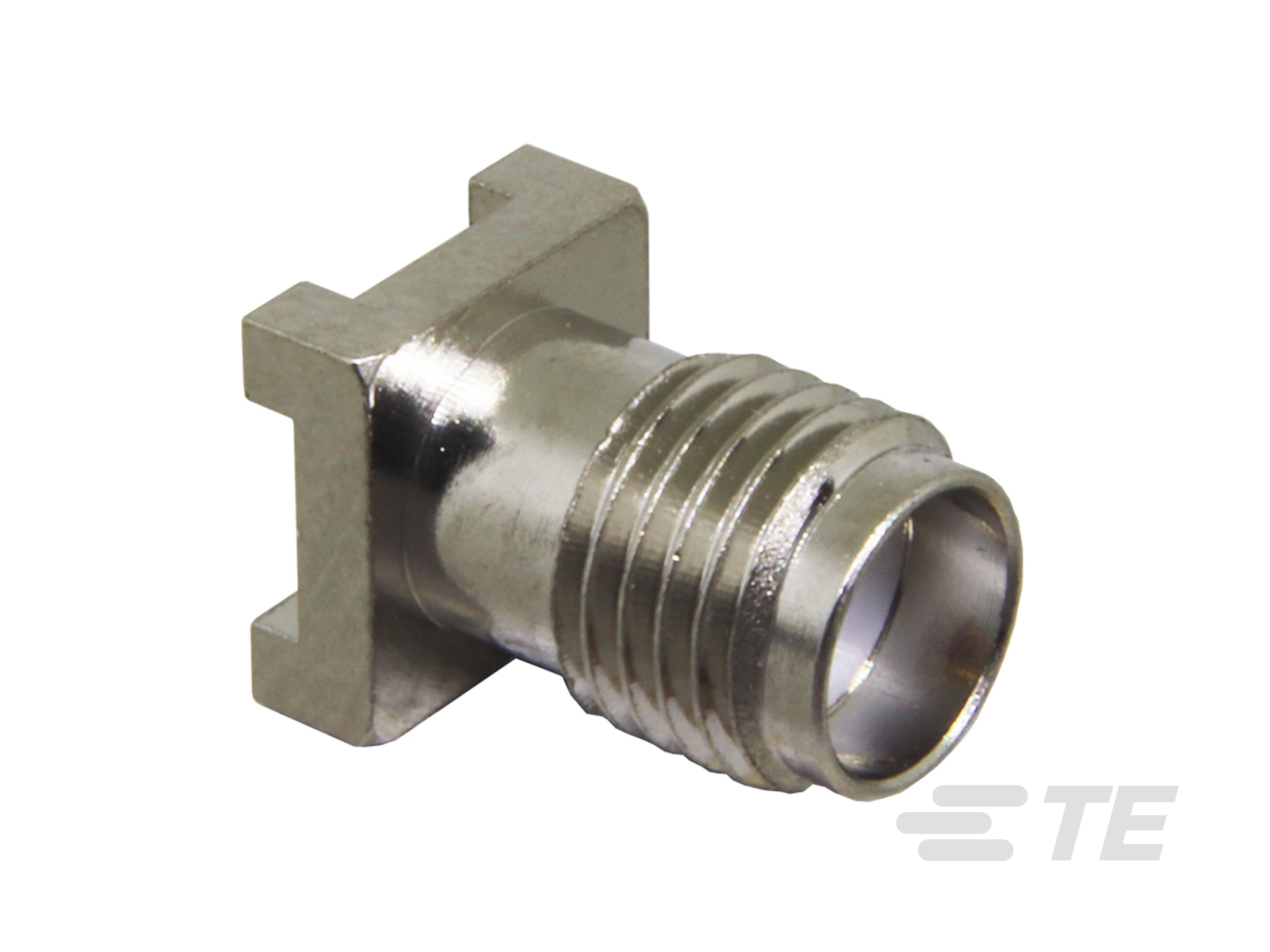

 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Nickel | 500 | Gold | Solder | Beryllium Copper | 50 Ohms | 18 GHz | 1 | Surface Mount | Solder | Threaded | Silver | Receptacle Female Socket | SMA | |||||||||||

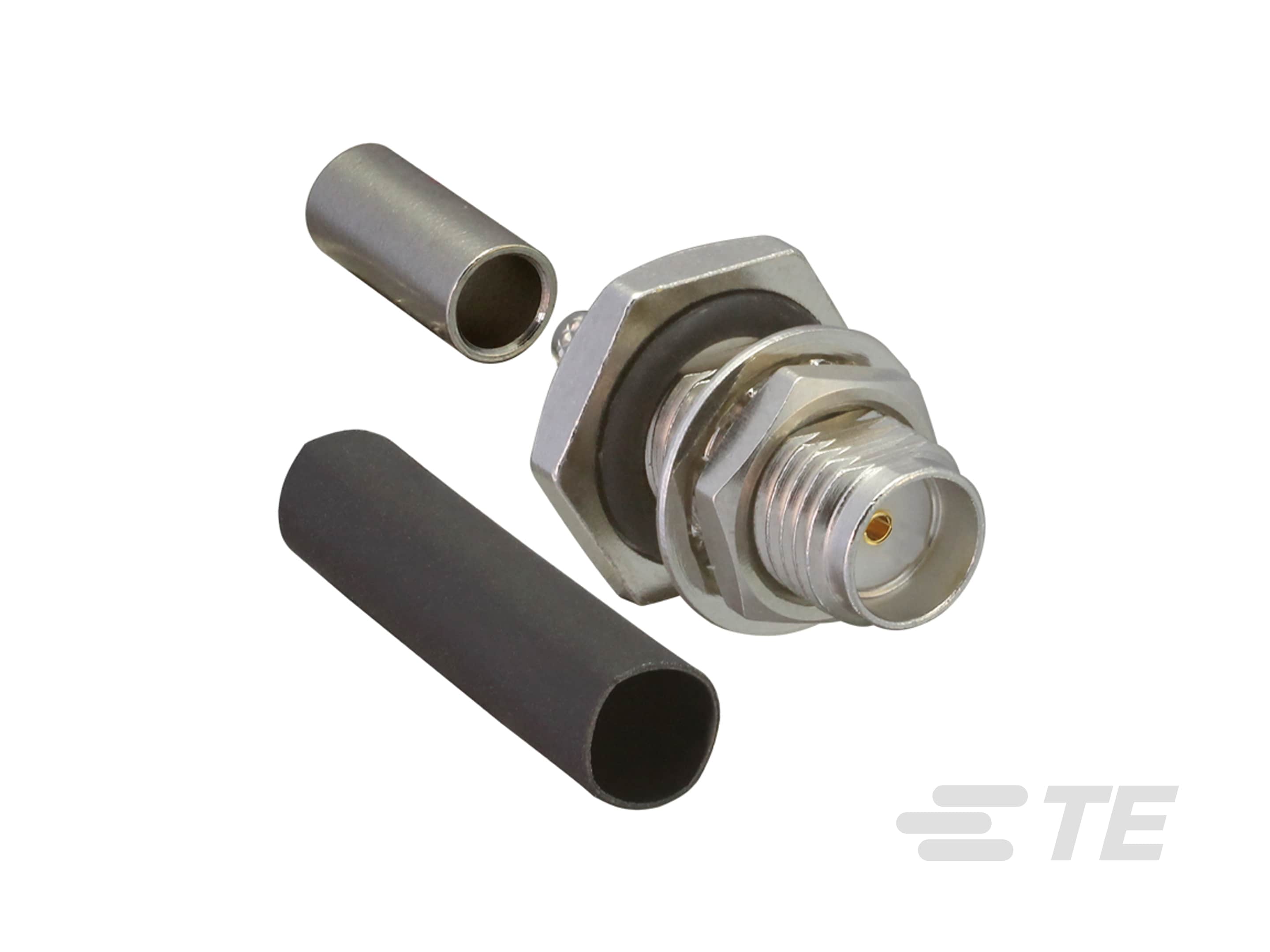

 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Nickel | 500 | Gold | Crimp | Brass | 50 Ohms | 12.4 GHz | 1 | Panel Mount | Solder | Threaded | Silver | Receptacle Female Socket | SMA | 335 V | Bulkhead - Front Side Nut | RG-174 | ||||||||

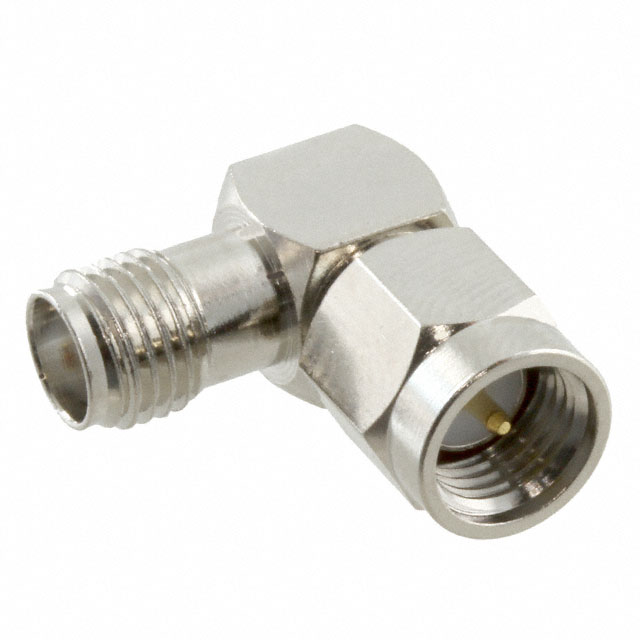

 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Nickel | 500 | Gold | Beryllium Copper | 50 Ohms | 12.4 GHz | Free Hanging (In-Line) Right Angle | Male Pin SMA Plug | SMA to SMA | SMA Jack Female Socket | Plug to Jack | Same Series | Right Angle | ||||||||||||
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Nickel | 500 | Gold | Crimp | Beryllium Copper | 50 Ohms | 12.4 GHz | 1 | Free Hanging (In-Line) | Solder | Threaded | Silver | Receptacle Female Socket | SMA | 250 V | 1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support | RG-178 | ||||||||
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Nickel | 500 | Gold | Solder | Beryllium Copper | 50 Ohms | 18 GHz | 1 | Board Edge End Launch Panel Mount | Solder | Threaded | Silver | Receptacle Female Socket | SMA | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | |||||||||

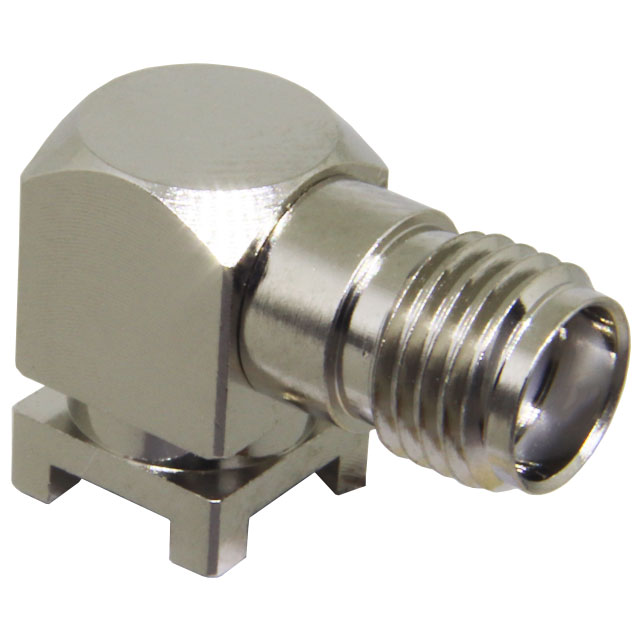

 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Nickel | 500 | Gold | Solder | Beryllium Copper | 50 Ohms | 18 GHz | 1 | Right Angle Surface Mount | Solder | Threaded | Silver | Receptacle Female Socket | SMA | |||||||||||

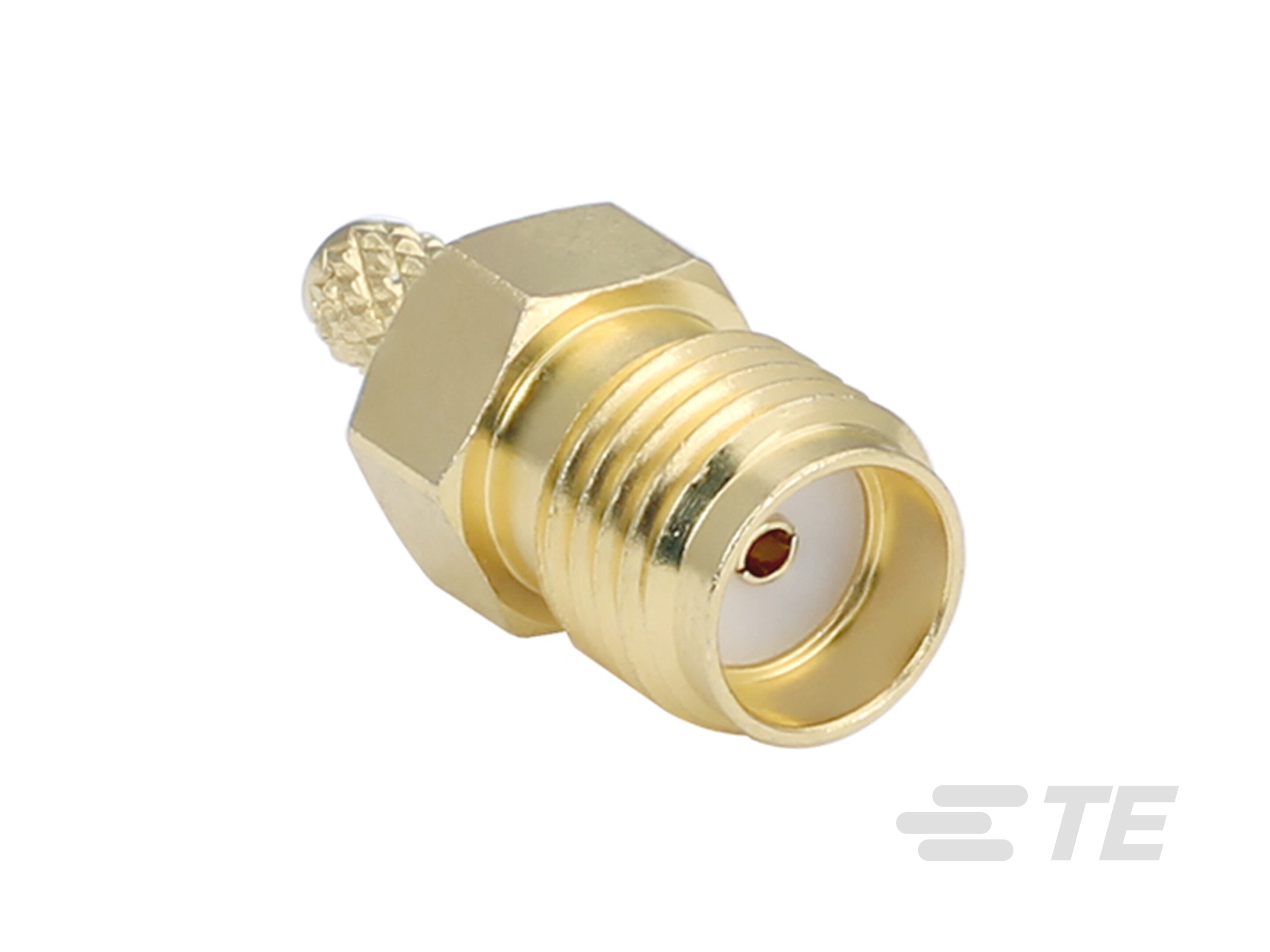

 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 500 | Gold | Crimp | Beryllium Copper | 50 Ohms | 18 GHz | 1 | Free Hanging (In-Line) | Solder | Threaded | Gold | Receptacle Female Socket | SMA | 335 V | RG-174 |
