TXM-418 Series

Catalog

MODULE KH3 418MHZ AM OOK TX XMTR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Modulation or Protocol	Features	Data Interface	Current - Transmitting	Applications	Frequency	Package / Case	Mounting Type	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Connector	Supplier Device Package	Data Rate (Max) [Max]	Power - Output [Min]	Power - Output [Max]

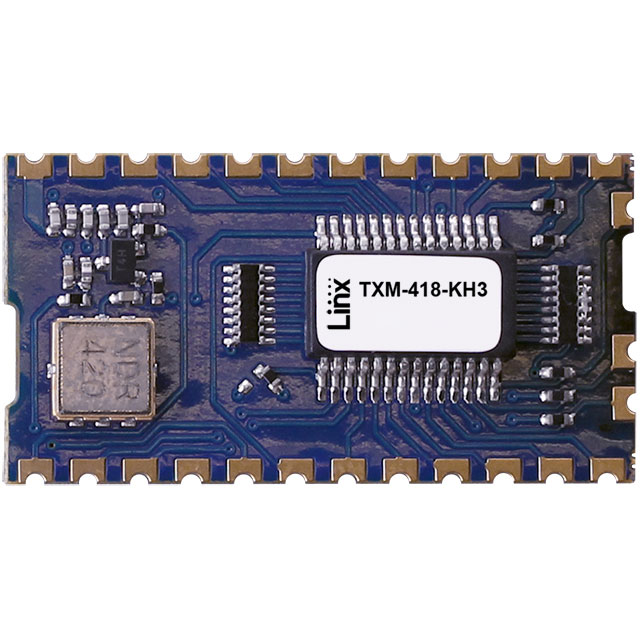

TE Connectivity AMP Connectors TXM-418-KH3	-30 ░C	70 °C	ASK OOK	Built-in Remote Control Encoder	Parallel	2.7 mA	Home/Industrial Automation Lighting Remote Control RKE	418 MHz	27-SMD Module	Surface Mount	4 dBm	5.2 V	2.7 V	Castellation	Module

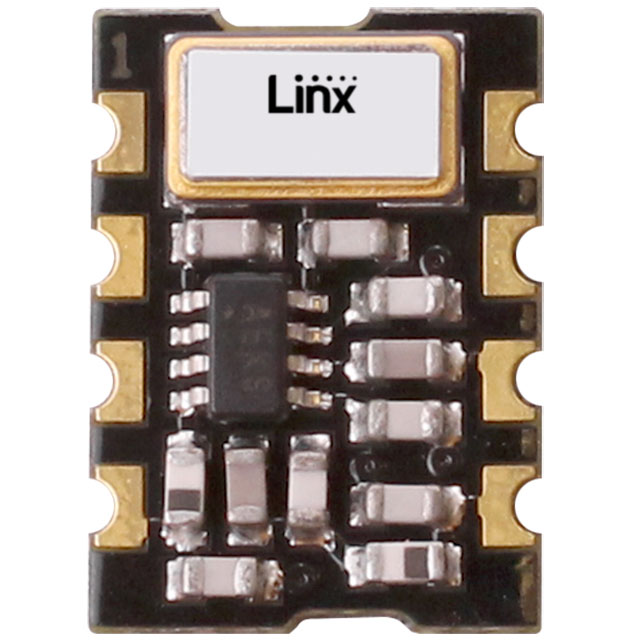

TE Connectivity AMP Connectors TXM-418-LR	-40 C	85 °C	ASK OOK		Serial	8.5 mA	Home/Industrial Automation Lighting Remote Control RKE Security	418 MHz	8-SMD Module	Surface Mount		3.6 V	2.1 V	Castellation	Module	10 kbps	-4 dBm	4 dBm
TE Connectivity AMP Connectors TXM-418-LC	-30 ░C	70 °C	ASK OOK		Serial	5.2 mA	Home/Industrial Automation Lighting Remote Control RKE Security	418 MHz	8-SMD Module	Surface Mount		5.2 V	2.7 V	Castellation	Module	5 kbps	-4 dBm	4 dBm
