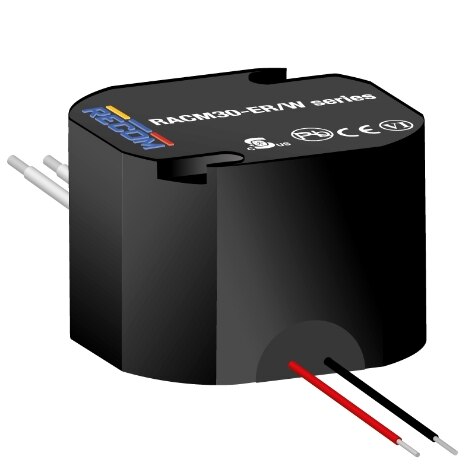

AC/DC Power Modules 30W 90-264Vin 12Vout 2.5A IP68MED
Beta
⌘K
AC/DC Power Modules 30W 90-264Vin 12Vout 2.5A IP68MED
AC/DC Power Modules 30W 90-264Vin 12Vout 2.5A IP68MED
| Part | Line Regulation | Load Regulation | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Type | Number of Outputs | Voltage - Output 1 | Efficiency | Applications | Current - Output (Max) [Max] | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Voltage - Isolation | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1 % | 1 % | 30 Watts | 264 VAC | 90 VAC | 70 °C | -20 °C | Through Hole | IP68 Universal Input | Enclosed | 1 | 12 V | 89 % | Household Appliances ITE (Commercial) Medical | 2.5 A | CE | 51 mm | 34 mm | 1.34 " | 2 in | 2.09 in | 53 mm | 4-DIP Module | ||
 Recom Power | 30 Watts | 264 VAC | 90 VAC | 70 °C | -20 °C | Chassis Mount | IP68 Universal Input | Enclosed | 1 | 24 V | 89 % | Household Appliances ITE (Commercial) Medical | CE | 51 mm | 34 mm | 1.34 " | 2 in | 2.09 in | 53 mm | 4.4 kV | 1.25 A | ||||
 Recom Power | 30 Watts | 264 VAC | 90 VAC | 70 °C | -20 °C | Chassis Mount | IP68 Universal Input | Enclosed | 1 | 12 V | 89 % | Household Appliances ITE (Commercial) Medical | CE | 51 mm | 34 mm | 1.34 " | 2 in | 2.09 in | 53 mm | 4.4 kV | 2.5 A |
