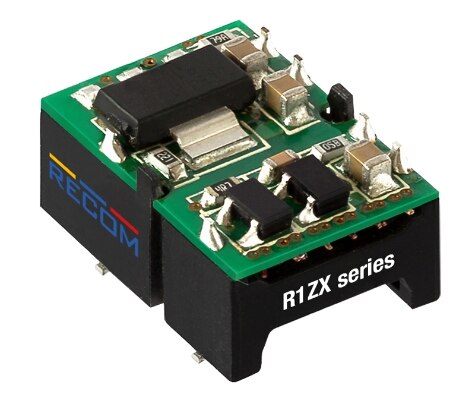

R1ZX Series

Catalog

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Part	Voltage - Input (Max) [Max]	Features	Applications	Efficiency	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Voltage - Output 1	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation
Recom Power R1ZX-0505/P-TRAY	5.25 V	OCP OVP SCP	ITE (Commercial)	68 %	1	0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	80 ¯C	-40 °C	Isolated Module	10-SMD Module 6 Leads	5 V	CB cURus	200 mA	4.75 V	Surface Mount	1000 V
Recom Power R1ZX-0505/HP-TRAY	5.25 V	OCP OVP SCP	ITE (Commercial)	68 %	1	0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	80 ¯C	-40 °C	Isolated Module	10-SMD Module 6 Leads	5 V	CB cURus	200 mA	4.75 V	Surface Mount	2000 V
Recom Power R1ZX-0505/HP-R	5.25 V	OCP OTP SCP	ITE (Commercial)	68 %	1	0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	80 ¯C	-40 °C	Isolated Module	10-SMD Module 6 Leads	5 V	CB cURus	200 mA	4.75 V	Surface Mount	2000 V
Recom Power R1ZX-0505/P-R	5.25 V	OCP OVP SCP	ITE (Commercial)	68 %	1	0.6 " 15.2 mm	0.33 " 8.5 mm	0.42 " 10.7 mm	80 ¯C	-40 °C	Isolated Module	10-SMD Module 6 Leads	5 V	CB cURus	200 mA	4.75 V	Surface Mount	1000 V
