7102 Series

Catalog

RELAY REED DPST 500MA 5V

Part	Coil Resistance	Must Release Voltage	Coil Voltage	Must Operate Voltage	Operate Time	Coil Current	Switching Voltage [Max]	Release Time	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Termination Style	Coil Type	Contact Form
COTO TECHNOLOGY 7102-05-1010	150 Ohms	0.4 VDC	5 VDC	3.75 VDC	1 ms	33.3 mA	200 VDC 200 VAC	0.1 ms	Through Hole	Electrostatic Shield	85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)

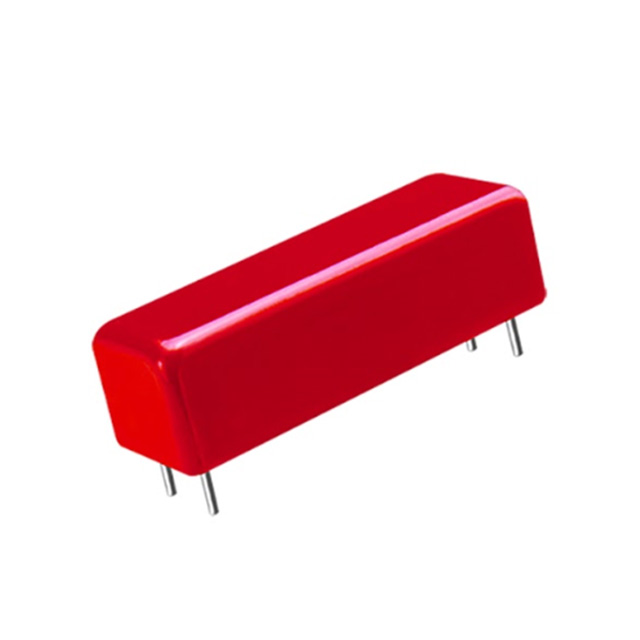

COTO TECHNOLOGY 7102-05-1000	150 Ohms	0.4 VDC	5 VDC	3.75 VDC	1 ms	33.3 mA	200 VDC 200 VAC	0.1 ms	Through Hole		85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)
COTO TECHNOLOGY 7102-12-1000	1 kOhms	1 VDC	12 VDC	9 VDC	1 ms	12 mA	200 VDC 200 VAC	0.1 ms	Through Hole		85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)

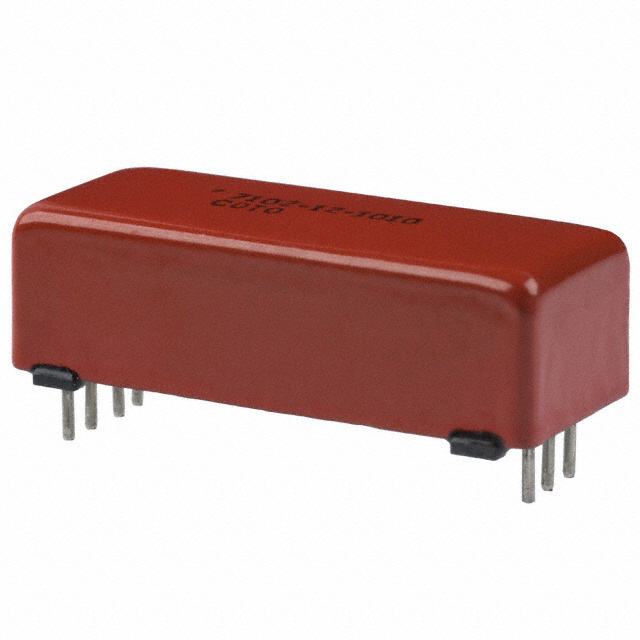

COTO TECHNOLOGY 7102-12-1010	1 kOhms	1 VDC	12 VDC	9 VDC	1 ms	12 mA	200 VDC 200 VAC	0.1 ms	Through Hole	Electrostatic Shield	85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)

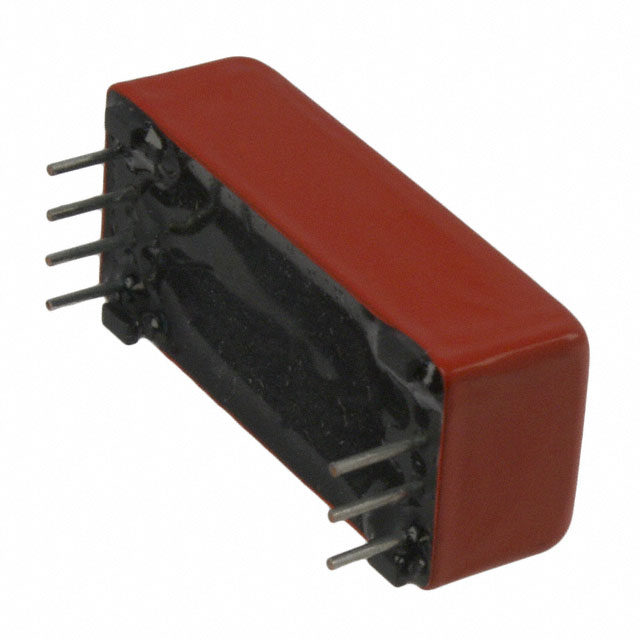

COTO TECHNOLOGY 7102-05-1011	150 Ohms	0.4 VDC	5 VDC	3.75 VDC	1 ms	33.3 mA	200 VDC 200 VAC	0.1 ms	Through Hole	Diode Electrostatic Shield	85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)
COTO TECHNOLOGY 7102-24-1000	3.5 kOhms	2 VDC	24 VDC	18 VDC	1 ms	6.9 mA	200 VDC 200 VAC	0.1 ms	Through Hole		85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)
COTO TECHNOLOGY 7102-12-1110	1 kOhms	1 VDC	12 VDC	9 VDC	1 ms	12 mA	200 VDC 200 VAC	0.1 ms	Through Hole	Electrostatic Shield	85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)

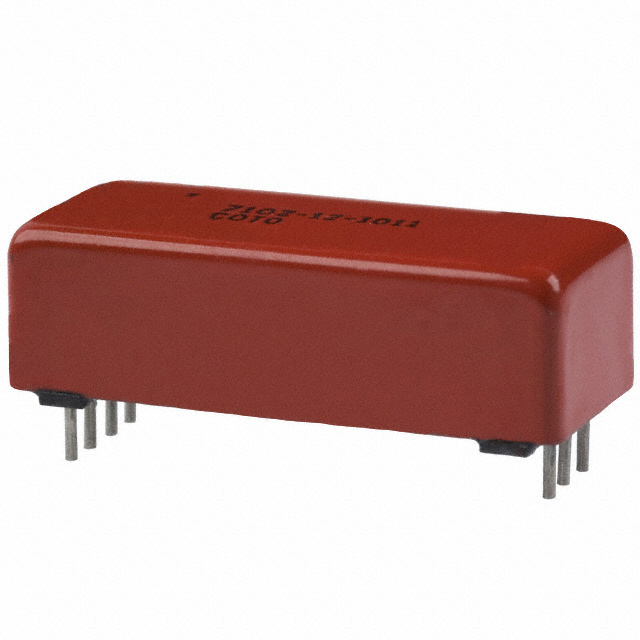

COTO TECHNOLOGY 7102-12-1011	1 kOhms	1 VDC	12 VDC	9 VDC	1 ms	12 mA	200 VDC 200 VAC	0.1 ms	Through Hole	Diode Electrostatic Shield	85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)
COTO TECHNOLOGY 7102-05-1001	150 Ohms	0.4 VDC	5 VDC	3.75 VDC	1 ms	33.3 mA	200 VDC 200 VAC	0.1 ms	Through Hole	Diode	85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)
COTO TECHNOLOGY 7102-12-1001	1 kOhms	1 VDC	12 VDC	9 VDC	1 ms	12 mA	200 VDC 200 VAC	0.1 ms	Through Hole	Diode	85 °C	-20 ░C	0.5 A	PC Pin	Non Latching	DPST-NO (2 Form A)
