KTS Series

Manufacturer: Chemi-Con

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Temperature Coefficient	Capacitance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Rated	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Applications	Thickness (Max) [Max] [z]	Thickness (Max) [Max] [z]	Package / Case	Size / Dimension [y]
Chemi-Con KTS101B685K43N0T00	0.11 in	2.8 mm	X7R	6.8 µF	0.177 in	4.5 mm	3.2 mm	0.126 in	100 V	10 %	-55 C	125 °C	MLCC Surface Mount	1812 (4532 Metric)	SMPS Filtering

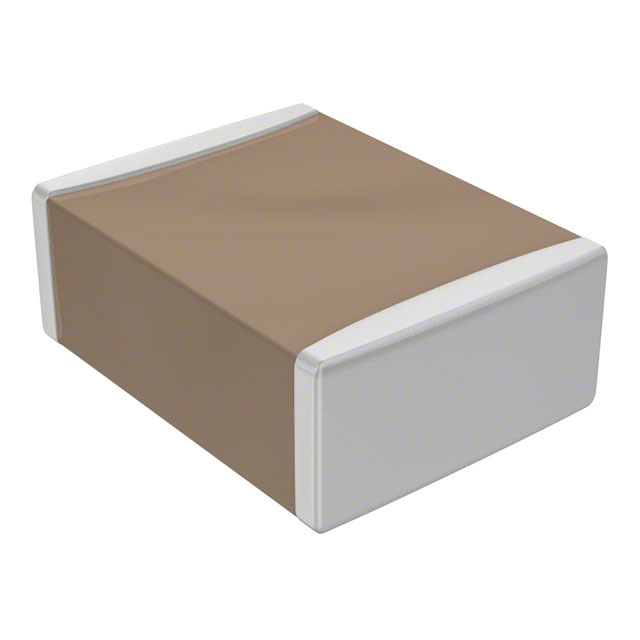

Chemi-Con KTS500B226K76N0T00			X7R	22 µF	0.295 "	7.5 mm	6.3 mm	0.248 in	50 VDC	10 %	-55 C	125 °C	MLCC Surface Mount	3025 (7563 Metric)	SMPS Filtering	4 mm	0.157 in
Chemi-Con KTS350B335M32N0T00	0.102 "	2.6 mm	X7S	3.3 µF	0.126 "	3.2 mm	2.5 mm	0.098 in	35 V	20 %	-55 C	125 °C	MLCC Surface Mount	1210	General Purpose			3225 Metric
Chemi-Con KTS251B683K31N0T00	0.071 in	1.8 mm	X7R	0.068 µF	0.126 "	3.2 mm	1.6 mm	0.063 "	250 V	10 %	-55 C	125 °C	MLCC Surface Mount	1206 (3216 Metric)	SMPS Filtering
Chemi-Con KTS500B156K55N0T00	0.11 in	2.8 mm	X7R	15 µF	0.224 "	5.7 mm		0.197 "	50 VDC	10 %	-55 C	125 °C	MLCC Surface Mount	2220	SMPS Filtering			5750 Metric	5 mm
Chemi-Con KTS500B155K31N0T00	0.071 in	1.8 mm	X7R	1500 nF	0.126 "	3.2 mm	1.6 mm	0.063 "	50 VDC	10 %	-55 C	125 °C	MLCC Surface Mount	1206 (3216 Metric)	SMPS Filtering
Chemi-Con KTS350B225M31N0T00	0.071 in	1.8 mm	X7S	2.2 µF	0.126 "	3.2 mm	1.6 mm	0.063 "	35 V	20 %	-55 C	125 °C	MLCC Surface Mount	1206 (3216 Metric)	General Purpose
