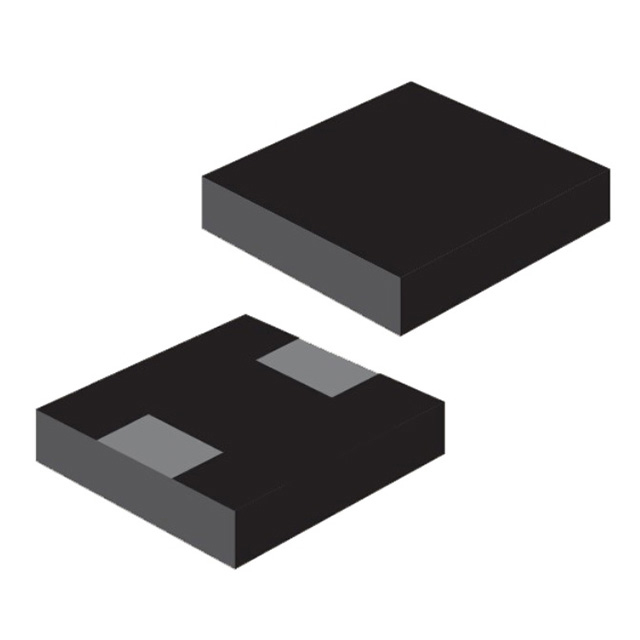

ECS-MPIL0530 Series
Manufacturer: ECS Inc.
Beta
⌘K
POWER INDUCTORS - SMD 15UH +/-20% 5A IRON CORE SHIELDED
| Part | Inductance Frequency - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Inductance | Package / Case | Shielding | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 100 kHz | 0.118 " | 3 mm | 95 mOhm | 4 A | 0.26 in | 7.4 mm | 0.291 in | 6.6 mm | 20 % | 15 µH | Nonstandard | Shielded | Molded | Surface Mount |
