LAA6 Series
Manufacturer: Panduit Corp
Beta
⌘K

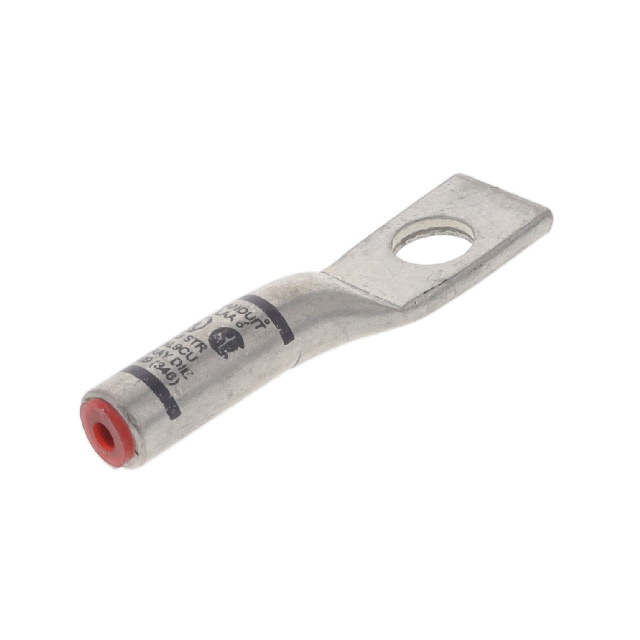

CONN TERM RECT TONG 6 AWG #3/16
| Part | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Finish | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Material | Terminal Style | Wire Gauge | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Type | Termination | Length - Overall | Length - Overall | Stud/Tab Size | Tab Thickness | Tab Thickness | Features | Insulation | Mounting Type | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 8.64 mm | 0.34 in | Tin | 5.08 mm | 0.2 in | Aluminum | Single Stud Hole | 6 AWG | 0.55 in | 13.97 mm | Rectangular Tongue | Barrel Crimp | 2.2 " | 55.88 mm | 3/16 | 0.11 in | 2.79 mm | Gel Filled | Non-Insulated | Free Hanging (In-Line) | |
 Panduit Corp | 8.64 mm | 0.34 in | Tin | 5.08 mm | 0.2 in | Aluminum | Single Stud Hole | 6 AWG | 0.55 in | 13.97 mm | Rectangular Tongue | Barrel Crimp | 2.2 " | 55.88 mm | 0.11 in | 2.79 mm | Gel Filled | Non-Insulated | Free Hanging (In-Line) | 0.25 Stud |
