LTC6910 Series

Digitally Controlled Programmable Gain Amplifiers in SOT-23

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Digitally Controlled Programmable Gain Amplifiers in SOT-23

Part	Output Type	Current - Supply	Mounting Type	Voltage - Input Offset	Slew Rate	Current - Output / Channel	Gain Bandwidth Product	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Circuits	Voltage - Supply Span (Min) [Min]	Voltage - Supply Span (Max) [Max]	Package / Case	Amplifier Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Current - Supply (Main IC)	Utilized IC / Part	Contents	Channels per IC
Analog Devices Inc./Maxim Integrated LTC6910-3ITS8#TRPBF	Rail-to-Rail	3.5 mA	Surface Mount	1.5 mV	16 V/µs	35 mA	11 MHz	85 °C	-40 C	TSOT-23-8	1	2.7 V	10.5 V	SOT-23-8 Thin TSOT-23-8	Programmable Gain

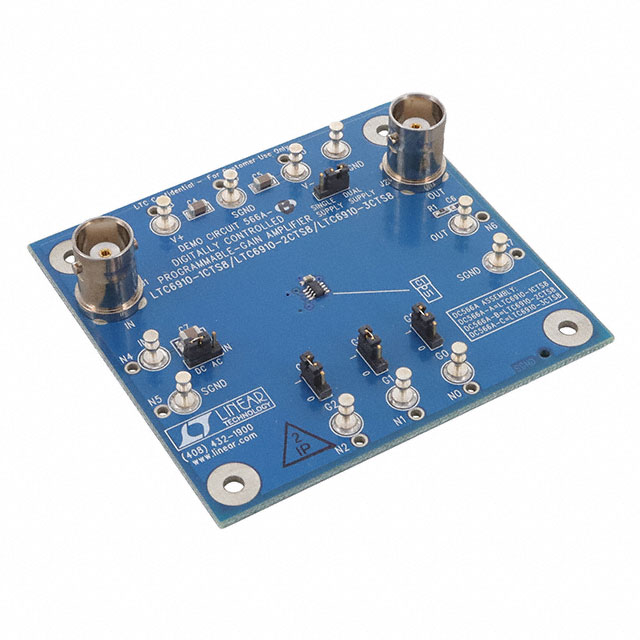

Analog Devices Inc./Maxim Integrated DC566A-B	Rail-to-Rail Single-Ended				16 V/µs	35 mA	13 MHz								Programmable Gain	5.25 V 10.5 V	-2.7 V 2.7 V	3.5 mA	LTC6910-2	Board(s)	1
Analog Devices Inc./Maxim Integrated LTC6910-2HTS8#TRPBF	Rail-to-Rail	3.5 mA	Surface Mount	1.5 mV	16 V/µs	35 mA	13 MHz	125 °C	-40 C	TSOT-23-8	1	2.7 V	10.5 V	SOT-23-8 Thin TSOT-23-8	Programmable Gain
Analog Devices Inc./Maxim Integrated LTC6910-1HTS8#TRMPBF	Rail-to-Rail	3.5 mA	Surface Mount	1.5 mV	16 V/µs	35 mA	11 MHz	125 °C	-40 C	TSOT-23-8	1	2.7 V	10.5 V	SOT-23-8 Thin TSOT-23-8	Programmable Gain
Analog Devices Inc./Maxim Integrated LTC6910-2CTS8#TRMPBF	Rail-to-Rail	3.5 mA	Surface Mount	1.5 mV	16 V/µs	35 mA	13 MHz	85 °C	-40 C	TSOT-23-8	1	2.7 V	10.5 V	SOT-23-8 Thin TSOT-23-8	Programmable Gain
Analog Devices Inc./Maxim Integrated LTC6910-1ITS8#TRPBF	Rail-to-Rail	3.5 mA	Surface Mount	1.5 mV	16 V/µs	35 mA	11 MHz	85 °C	-40 C	TSOT-23-8	1	2.7 V	10.5 V	SOT-23-8 Thin TSOT-23-8	Programmable Gain
Analog Devices Inc./Maxim Integrated LTC6910-3HTS8#TRPBF	Rail-to-Rail	3.5 mA	Surface Mount	1.5 mV	16 V/µs	35 mA	11 MHz	125 °C	-40 C	TSOT-23-8	1	2.7 V	10.5 V	SOT-23-8 Thin TSOT-23-8	Programmable Gain
Analog Devices Inc./Maxim Integrated LTC6910-2HTS8#TRMPBF	Rail-to-Rail	3.5 mA	Surface Mount	1.5 mV	16 V/µs		13 MHz	125 °C	-40 C	TSOT-23-8	1	2.7 V	10.5 V	SOT-23-8 Thin TSOT-23-8	Programmable Gain
Analog Devices Inc./Maxim Integrated DC566A-A	Rail-to-Rail Single-Ended				16 V/µs	35 mA	11 MHz								Programmable Gain	5.25 V 10.5 V	-2.7 V 2.7 V	3.5 mA	LTC6910-1	Board(s)	1
Analog Devices Inc./Maxim Integrated LTC6910-2ITS8#TRMPBF	Rail-to-Rail	3.5 mA	Surface Mount	1.5 mV	16 V/µs	35 mA	13 MHz	85 °C	-40 C	TSOT-23-8	1	2.7 V	10.5 V	SOT-23-8 Thin TSOT-23-8	Programmable Gain

Catalog

Digitally Controlled Programmable Gain Amplifiers in SOT-23

Description

The LTC6910 family are low noise digitally programmable gain amplifiers (PGAs) that are easy to use and occupy very little PC board space. The inverting gain is adjustable using a 3-bit digital input to select gains of 0, 1, 2, 5, 10, 20, 50 and 100V/V in the LTC6910-1; 0, 1, 2, 4, 8, 16, 32 and 64V/V in the LTC6910-2; and 0, 1, 2, 3, 4, 5,6 and 7V/V in the LTC6910-3.The LTC6910-Xs are inverting amplifiers with rail-to-rail output. When operated with unity gain, they will also process rail-to-rail input signals. A half-supply reference generated internally at the AGND pin supports single power supply applications. Operating from single or split supplies from 2.7V to 10.5V, the LTC6910-X family is offered in an 8-lead SOT-23 package.ApplicationsData Acquisition SystemsDynamic Gain ChangingAutomatic Ranging CircuitsAutomatic Gain Control
