ANT-490 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
ANTENNA 1/4 WAVE WHIP 490MHZ SMA
| Part | RF Family/Standard | Frequency Range [Max] | Frequency Range [Min] | Mounting Type | Frequency Group [Max] | Frequency Group | Frequency Group [Min] | Antenna Type | Applications | Power - Max [Max] | Frequency (Center/Band) | Number of Bands | Height (Max) [z] | Height (Max) [z] | Gain | VSWR | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

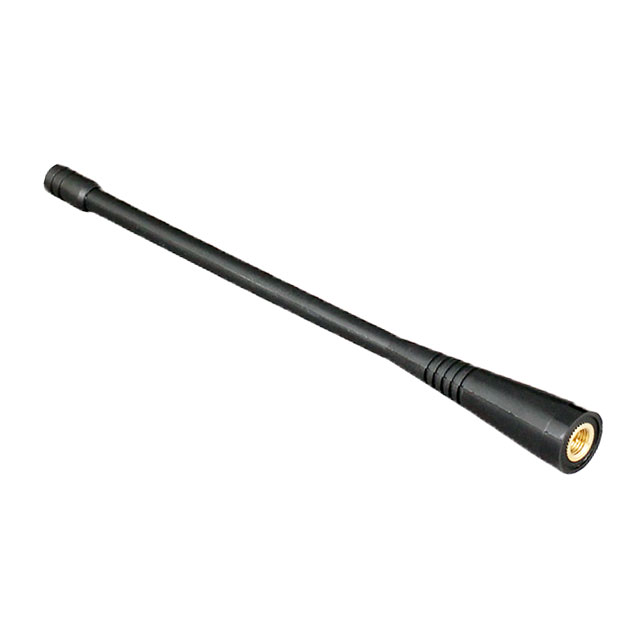

 TE Connectivity AMP Connectors | General ISM | 510 MHz | 470 MHz | Connector Mount | 1 GHz | UHF | 300 MHz | Whip Straight | GSM ISM LoRaWAN LTE Sigfox | 10 W | 480 MHz 500 MHz | 1 | 157.7 mm | 6.209 in | 1.3 dBi | 1.5 | O-Ring Compatible | |

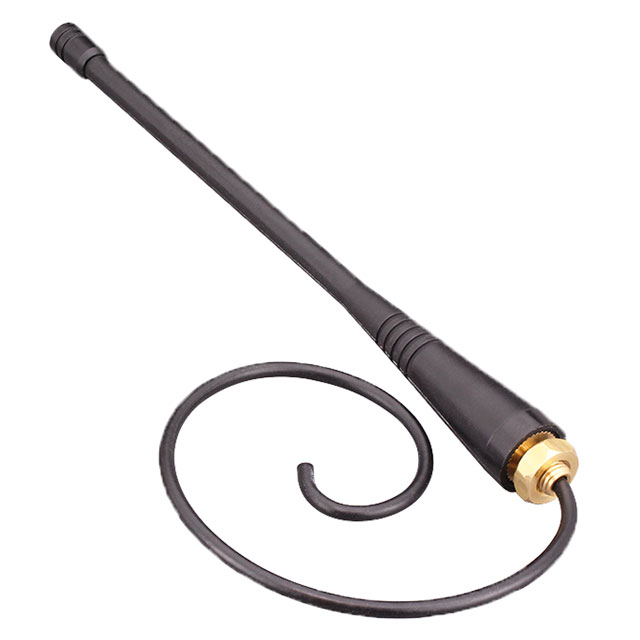

 TE Connectivity AMP Connectors | General ISM | 510 MHz | 470 MHz | Panel Mount | 1 GHz | UHF | 300 MHz | Whip Straight | GSM ISM LoRaWAN LTE Sigfox UMTS | 10 W | 1 | 157.7 mm | 6.209 in | 1.3 dBi | 1.5 | Cable - 216mm O-Ring Compatible | I-PEX MHF1 U.FL (UMCC) | |
 TE Connectivity AMP Connectors | General ISM | 510 MHz | 470 MHz | Panel Mount | 1 GHz | UHF | 300 MHz | Whip Straight | GSM ISM LoRaWAN LTE Sigfox UMTS | 10 W | 1 | 157.7 mm | 6.209 in | 1.3 dBi | 1.5 | Cable - 216mm O-Ring Compatible | Solder |
