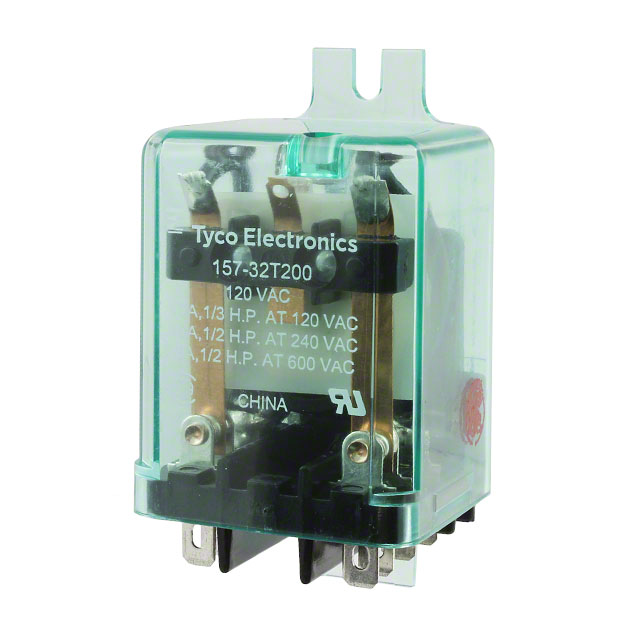

157-32T Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 120V
| Part | Coil Resistance | Switching Voltage | Coil Current | Coil Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Mounting Type | Contact Rating (Current) | Release Time | Must Operate Voltage | Load - Max Switching | Coil Voltage | Operate Time | Termination Style | Termination Style | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.25 kOhms | 28 VDC 240 VAC | 53.3 mA | Non Latching | Silver Cadmium Oxide (AgCdO) | -45 °C | 70 °C | DPDT (2 Form C) | Chassis Mount | 10 A | 10 ms | 102 VAC | 2.7 VA | 120 VAC | 20 ms | 0.187 in 4.7 mm | Plug In Quick Connect | General Purpose |
 TE Connectivity AMP Connectors | 2.25 kOhms | 28 VDC 240 VAC | 53.3 mA | Non Latching | Gold (Au) Silver (Ag) | -45 °C | 70 °C | DPDT (2 Form C) | Socketable | 5 A | 10 ms | 102 VAC | 2.7 VA | 120 VAC | 20 ms | 0.187 in 4.7 mm | Plug In Quick Connect | General Purpose |
