0648-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

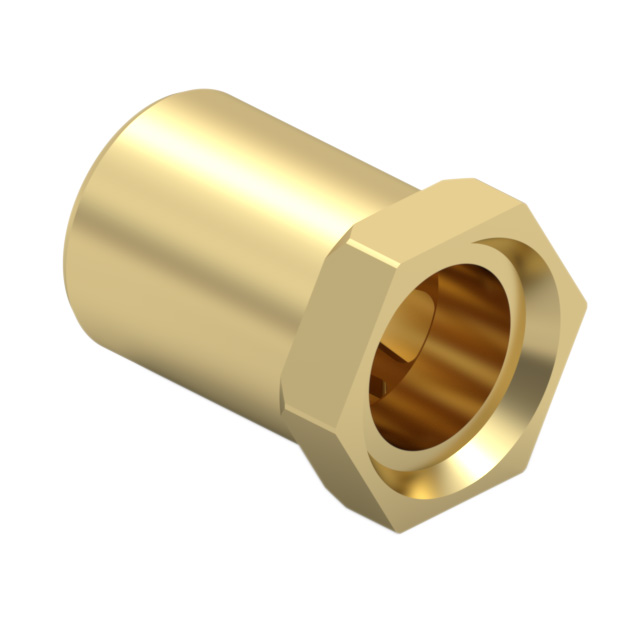

ZERO PROFILE RECEPTACLE FOR LEAD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Tail Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Termination | Socket Depth | Socket Depth | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | No Tail | 0.124 in | 3.15 mm | 3.56 mm | 0.14 in | Press-Fit | 2.79 mm | 0.11 in | Gold | 30 Áin | 0.76 Ám | 2.24 mm | 0.088 " | 0.123 in | 3.12 mm | Beryllium Copper |
