OA254EC Series
Manufacturer: ORION FANS
Beta
⌘K

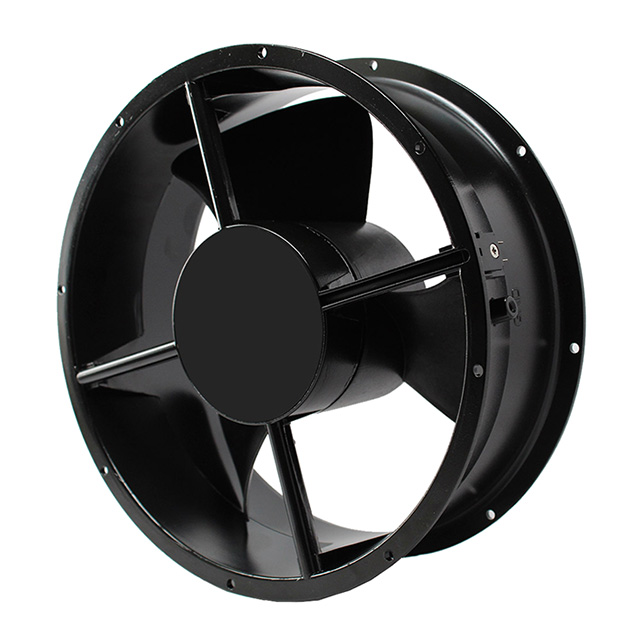

AC AXIAL FAN, 230V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 830 CFM
| Part | Material - Blade | Lifetime @ Temp. | Material - Frame | Current Rating (Amps) | Termination | Power (Watts) | Voltage - Rated | Size / Dimension | Size / Dimension [diameter] | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Air Flow | Air Flow | RPM | Features | Fan Type | Approval Agency | Ingress Protection | Weight | Weight | Bearing Type | Noise | Voltage - Rated [Min] | Voltage - Rated [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 0.64 A | 2 Wire Leads | 72 W | 230 VAC | Round | 10 in | 298.9 Pa | 1.2 in H2O | -20 ░C | 70 °C | 89 mm | 830 CFM | 23.24 m³/min | 2750 RPM | Electronic Commutation (EC) | Tubeaxial | ATEX CE cURus TUV UR | IP68 - Dust Tight Waterproof | 2.1 kg | 4.6 lbs | Ball | ||||
 ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 0.21 A | 22 W | Round | 10 in | 119.6 Pa | 0.48 in H2O | -20 ░C | 70 °C | 89 mm | 500 CFM | 14 mł/min | 1700 RPM | Electronic Commutation (EC) | Tubeaxial | CE cURus TUV UR | IP68 - Dust Tight Waterproof | 2.1 kg | 4.6 lbs | Ball | 56 dB | 95 VAC | 264 VAC | 2 | ||
ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 1.05 A | 75 W | 115 VAC | Round | 10 in | 298.9 Pa | 1.2 in H2O | -20 ░C | 70 °C | 89 mm | 830 CFM | 23.24 m³/min | 2750 RPM | Electronic Commutation (EC) | Tubeaxial | CE cURus TUV UR | IP68 - Dust Tight Waterproof | 2.1 kg | 4.6 lbs | Ball | 2 | ||||
ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 0.21 A | 22 W | Round | 10 in | 119.6 Pa | 0.48 in H2O | -20 ░C | 70 °C | 89 mm | 500 CFM | 14 mł/min | 1700 RPM | Electronic Commutation (EC) | Tubeaxial | CE cURus TUV UR | 2.1 kg | 4.6 lbs | Ball | 56 dB | 95 VAC | 264 VAC | 2 | |||
 ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 0.21 A | 2 Wire Leads | 22 W | Round | 10 in | 119.6 Pa | 0.48 in H2O | -20 ░C | 70 °C | 89 mm | 500 CFM | 14 mł/min | 1700 RPM | Electronic Commutation (EC) | Tubeaxial | ATEX CE cURus TUV UR | IP68 - Dust Tight Waterproof | 2.1 kg | 4.6 lbs | Ball | 56 dB | 95 VAC | 264 VAC | ||
ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 1.05 A | 2 Wire Leads | 75 W | 115 VAC | Round | 10 in | 298.9 Pa | 1.2 in H2O | -20 ░C | 70 °C | 89 mm | 830 CFM | 23.24 m³/min | 2750 RPM | Electronic Commutation (EC) | Tubeaxial | ATEX CE cURus TUV UR | IP68 - Dust Tight Waterproof | 2.1 kg | 4.6 lbs | Ball | ||||
 ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 0.64 A | 2 Wire Leads | 72 W | 230 VAC | Round | 10 in | 298.9 Pa | 1.2 in H2O | -20 ░C | 70 °C | 89 mm | 830 CFM | 23.24 m³/min | 2750 RPM | Electronic Commutation (EC) | Tubeaxial | CE cURus TUV UR | 2.1 kg | 4.6 lbs | Ball | |||||
ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 0.64 A | 72 W | 230 VAC | Round | 10 in | 298.9 Pa | 1.2 in H2O | -20 ░C | 70 °C | 89 mm | 830 CFM | 23.24 m³/min | 2750 RPM | Electronic Commutation (EC) | Tubeaxial | CE cURus TUV UR | IP68 - Dust Tight Waterproof | 2.1 kg | 4.6 lbs | Ball | 2 | ||||
ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 0.64 A | 72 W | 230 VAC | Round | 10 in | 298.9 Pa | 1.2 in H2O | -20 ░C | 70 °C | 89 mm | 830 CFM | 23.24 m³/min | 2750 RPM | Electronic Commutation (EC) | Tubeaxial | CE cURus TUV UR | 2.1 kg | 4.6 lbs | Ball | 2 | |||||
ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Aluminum | 1.05 A | 75 W | 115 VAC | Round | 10 in | 298.9 Pa | 1.2 in H2O | -20 ░C | 70 °C | 89 mm | 830 CFM | 23.24 m³/min | 2750 RPM | Electronic Commutation (EC) | Tubeaxial | CE cURus TUV UR | 2.1 kg | 4.6 lbs | Ball | 2 |
