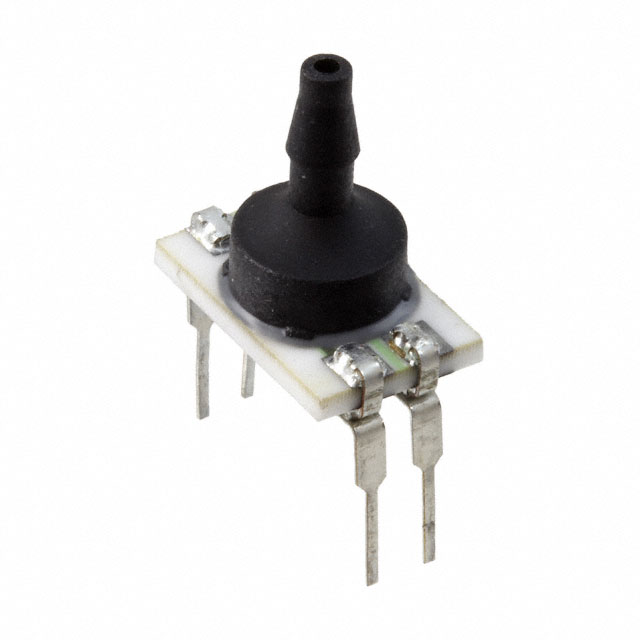

TBPDANN Series

Catalog

SENSOR 30PSIG 0.08" .02625V 4DIP

Part	Mounting Type	Termination Style	Port Size	Port Size	Port Size	Output Type	Maximum Pressure	Maximum Pressure [Max]	Supplier Device Package	Features	Accuracy	Port Style	Applications	Output [Max]	Output [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure	Operating Pressure	Output	Maximum Pressure
Honeywell Sensing and Productivity Solutions TBPDANN030PGUCV	Through Hole	PC Pin	Male Tube	2.54 mm	0.08 "	Wheatstone Bridge	792.9 kPa	115 PSI	4-DIP	Temperature Compensated	0.15 %	Barbed	Board Mount	26.25 mV	0 mV	125 °C	-40 C	Vented Gauge	4-DIP (0.453" 11.50mm) Top Port	12 V	1.5 V	30 PSI	206.84 kPa
Honeywell Sensing and Productivity Solutions TBPDANN060PGUCV	Through Hole	PC Pin	Male Tube	2.54 mm	0.08 "	Wheatstone Bridge	999.74 kPa		4-DIP	Temperature Compensated	0.15 %	Barbed	Board Mount	30 mV	0 mV	125 °C	-40 C	Vented Gauge	4-DIP (0.453" 11.50mm) Top Port	12 V	1.5 V	60 PSI	413.69 kPa	5V	145 PSI
