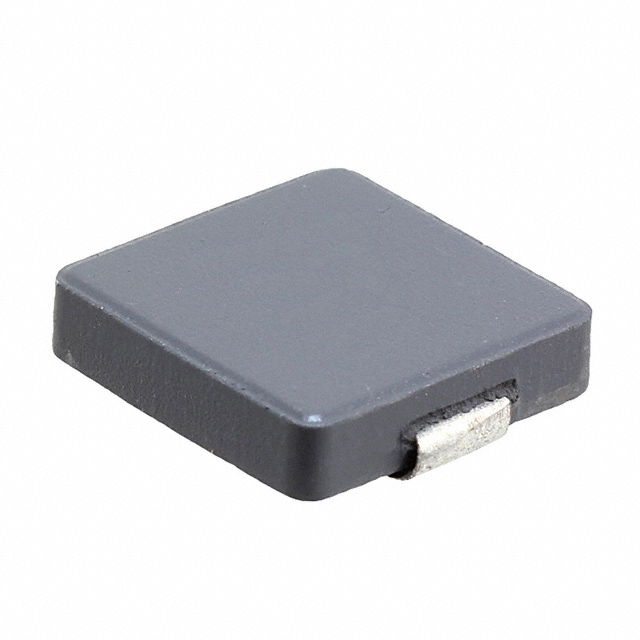

SRP1238A Series

Catalog

POWER INDUCTOR (SMD), 10 ΜH, 7 A, SHIELDED, 14 A, SRP1238A SERIES

Part	Q @ Freq	Inductance Frequency - Test	Shielding	Frequency - Self Resonant	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ratings	Type	Package / Case	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Tolerance	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. SRP1238A-100M	20 100 kHz	100 kHz	Shielded	11 MHz	7 A	0.138 "	3.5 mm	-40 C	150 °C	Surface Mount	AEC-Q200	Drum Core Wirewound	Nonstandard	10 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	20 %	14 A	34 mOhm
Bourns Inc. SRP1238A-8R2M	20 100 kHz	100 kHz	Shielded	12 MHz	8.5 A	0.138 "	3.5 mm	-40 C	150 °C	Surface Mount	AEC-Q200	Drum Core Wirewound	Nonstandard	8.2 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	20 %	16 A		28 mOhm
Bourns Inc. SRP1238A-R33M	10 100 kHz	100 kHz	Shielded	85 MHz	36.5 A	0.138 "	3.5 mm	-40 C	150 °C	Surface Mount	AEC-Q200	Drum Core Wirewound	Nonstandard	330 nH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	20 %			1 mOhm
Bourns Inc. SRP1238A-1R5M	20 100 kHz	100 kHz	Shielded	30 MHz	19 A	0.138 "	3.5 mm	-40 C	150 °C	Surface Mount	AEC-Q200	Drum Core Wirewound	Nonstandard	1.5 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	20 %	35 A	5.5 mOhm
Bourns Inc. SRP1238A-R68M	15 100 kHz	100 kHz	Shielded	50 MHz	28 A	0.138 "	3.5 mm	-40 C	150 °C	Surface Mount	AEC-Q200	Drum Core Wirewound	Nonstandard	0.68 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	20 %	49 A	2.5 mOhm
Bourns Inc. SRP1238A-2R2M	20 100 kHz	100 kHz	Shielded	25 MHz	16 A	0.138 "	3.5 mm	-40 C	150 °C	Surface Mount	AEC-Q200	Drum Core Wirewound	Nonstandard	2.2 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	20 %	29 A	8 mOhm
