MCDN Series

Catalog

PLUGGABLE TERMINAL BLOCKS 18 POS 3.5MM PITCH THROUGH HOLE HEADER

Part	Contact Tail Length	Contact Tail Length	Housing Material	Material Flammability Rating	Insulation Height	Insulation Height	Voltage - IEC	Contact Mating Finish	Number of Levels	Color	Number of Positions	Current - UL	Termination Style	Current - IEC	Pitch	Pitch	Positions Per Level	Type	Header Orientation	Mounting Type	Voltage - UL	Features	Positions Per Level [custom]
Phoenix Contact 1953871	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	0.598 in	15.19 mm	250 V	Tin	2	Black	36	8 A	Solder	8 A	3.5 mm	0.138 "	18	Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V
Phoenix Contact 1953224	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	0.598 in	15.19 mm	250 V	Tin	2	Black	8	8 A	Solder	8 A	3.5 mm	0.138 "	4	Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V	Locking Ramp
Phoenix Contact 1953295							250 V	Tin	2	Black	22	8 A	Solder	8 A	3.5 mm	0.138 "	11	Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V	Locking Ramp
Phoenix Contact 1953350							250 V	Tin	2	Black		8 A	Solder	8 A	3.5 mm	0.138 "	16	Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V	Locking Ramp
Phoenix Contact 1953965	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	0.598 in	15.19 mm	250 V	Tin	2	Black	14	8 A	Solder	8 A	3.5 mm	0.138 "		Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V		7
Phoenix Contact 1953842							250 V	Tin	2	Black	30	8 A	Solder	8 A	3.5 mm	0.138 "	15	Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V
Phoenix Contact 1953994							250 V	Tin	2	Black	20	8 A	Solder	8 A	3.5 mm	0.138 "	10	Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V
Phoenix Contact 1953923	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	0.598 in	15.19 mm	250 V	Tin	2	Black	6	8 A	Solder	8 A	3.5 mm	0.138 "	3	Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V

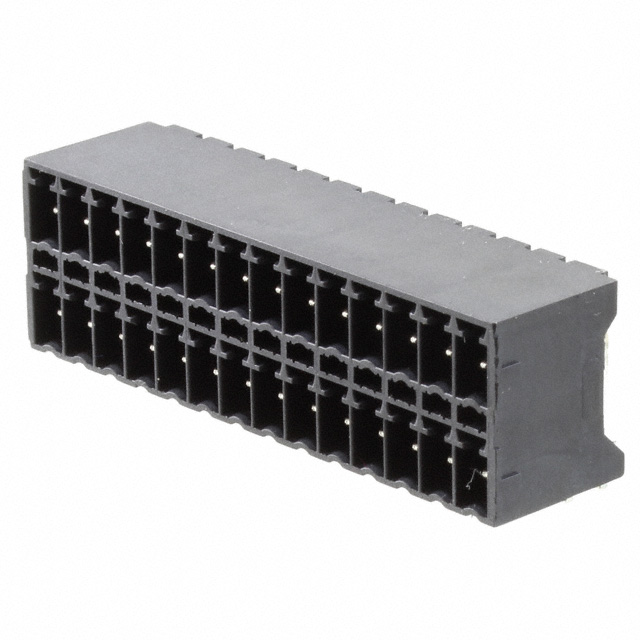

Phoenix Contact 1954058	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)	UL94 V-0	0.598 in	15.19 mm	250 V	Tin	2	Black	28	8 A	Solder	8 A	3.5 mm	0.138 "	14	Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V
Phoenix Contact 1795080							160 V	Gold	2	Black	40	8 A	Solder	8 A	3.5 mm	0.138 "	20	Header Male Pins Shrouded (4 Side)	90° Right Angle	Through Hole	150 V	Locking Ramp
