0955-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

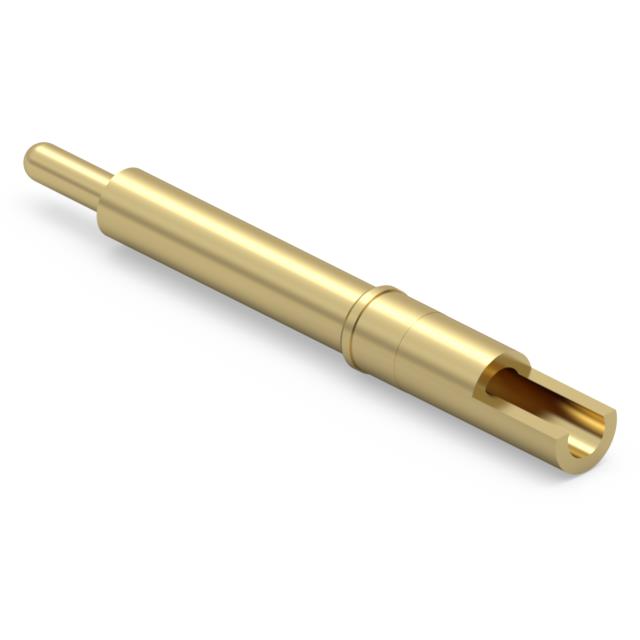

SOLDERCUP SPRING-LOADED PIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Mid Compression | Mounting Type | Mating Cycles | Features | Minimum Working Height | Minimum Working Height | Contact Material | Pad Layout Dimension | Pad Layout Dimension | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Recommended Working Height | Recommended Working Height | Contact Finish | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 60 gf | Solder Cup Through Hole | 1000000 | 26 AWG | 0.174 in | 4.42 mm | Brass Alloy | 0.042 in | 1.07 mm | 6.53 mm | 0.257 in | 5.2 A | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 0.202 in | 5.13 mm | Gold | 0.019 in | 0.48 mm |
