SFV26R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

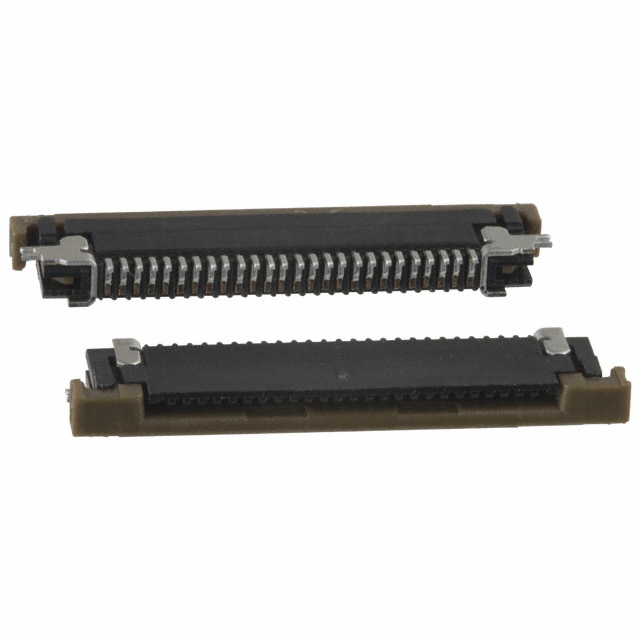

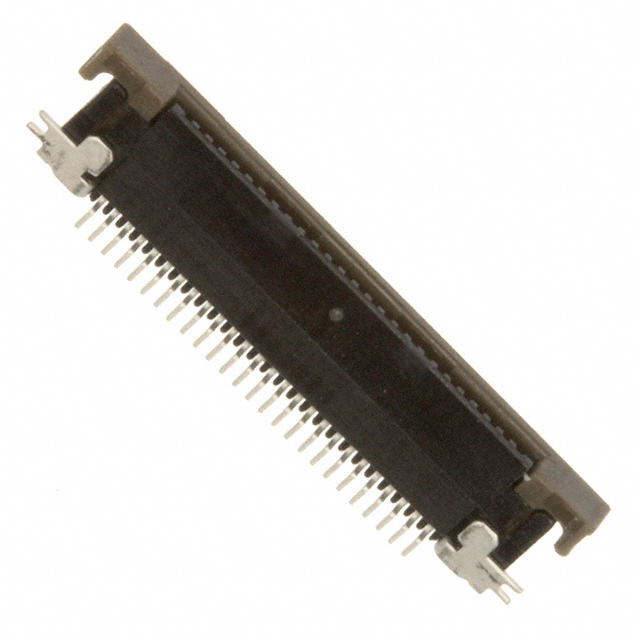

CONN FPC BOTTOM 26POS 0.5MM R/A
| Part | Actuator Color | Current Rating (Amps) | Locking Feature | Mating Cycles | Housing Color | Number of Positions | FFC, FCB Thickness | Cable End Type | Connector/Contact Type | Pitch | Pitch | Actuator Material | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Flat Flex Type | Contact Material | Contact Finish | Termination | Housing Material | Material Flammability Rating | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 0.5 A | Flip Lock Slide Lock | 20 | Black | 26 | 0.3 mm | Straight Tapered | Contacts Bottom | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | FPC | Phosphor Bronze | Gold | Solder | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | |||
Amphenol ICC (FCI) | Black | 0.5 A | Slide Lock | 20 | Black | 26 | 0.33 mm | Tapered | Contacts Top | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | FFC FPC | Phosphor Bronze | Gold | Solder | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | |||
 Amphenol ICC (FCI) | Slide Lock | 26 | 0.02 " | 0.5 mm | Right Angle Surface Mount | ||||||||||||||||||||||
 Amphenol ICC (FCI) | Brown | 0.5 A | Slide Lock | Black | 26 | Straight Tapered | Contacts Top | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled | 50 V | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | FFC FPC | Phosphor Bronze | Tin | Solder | Glass Filled Nylon Polyamide (PA) | UL94 V-0 | 0.3 mm | 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | ||
 Amphenol ICC (FCI) | Brown | 0.5 A | Slide Lock | 20 | Black | 26 | 0.33 mm | Notched | Contacts Bottom | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | FPC | Phosphor Bronze | Tin | Solder | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | |||
Amphenol ICC (FCI) | Black | 0.5 A | Slide Lock | 20 | Black | 26 | Straight Tapered | Contacts Top | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | FFC FPC | Phosphor Bronze | Gold | Solder | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | Black | 0.5 A | Slide Lock | 20 | Black | 26 | 0.3 mm | Tapered | Contacts Top | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | FFC FPC | Phosphor Bronze | Gold | Solder | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | Solder Retention Zero Insertion Force (ZIF) | ||
Amphenol ICC (FCI) | Black | 0.5 A | Slide Lock | 20 | Black | 26 | Straight Tapered | Contacts Top | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | FFC FPC | Phosphor Bronze | Gold | Solder | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | 0.3 mm | 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
 Amphenol ICC (FCI) | Brown | 0.5 A | Slide Lock | 20 | Black | 26 | Notched | Contacts Top | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | FPC | Phosphor Bronze | Tin | Solder | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | 0.3 mm | 0.33 mm | ||
Amphenol ICC (FCI) | Black | 0.5 A | Slide Lock | 20 | Black | 26 | Straight Tapered | Contacts Bottom | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | 0.071 in | 1.8 mm | Right Angle Surface Mount | -55 C | 105 ░C | FFC FPC | Phosphor Bronze | Gold | Solder | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | 0.3 mm | 0.33 mm |
