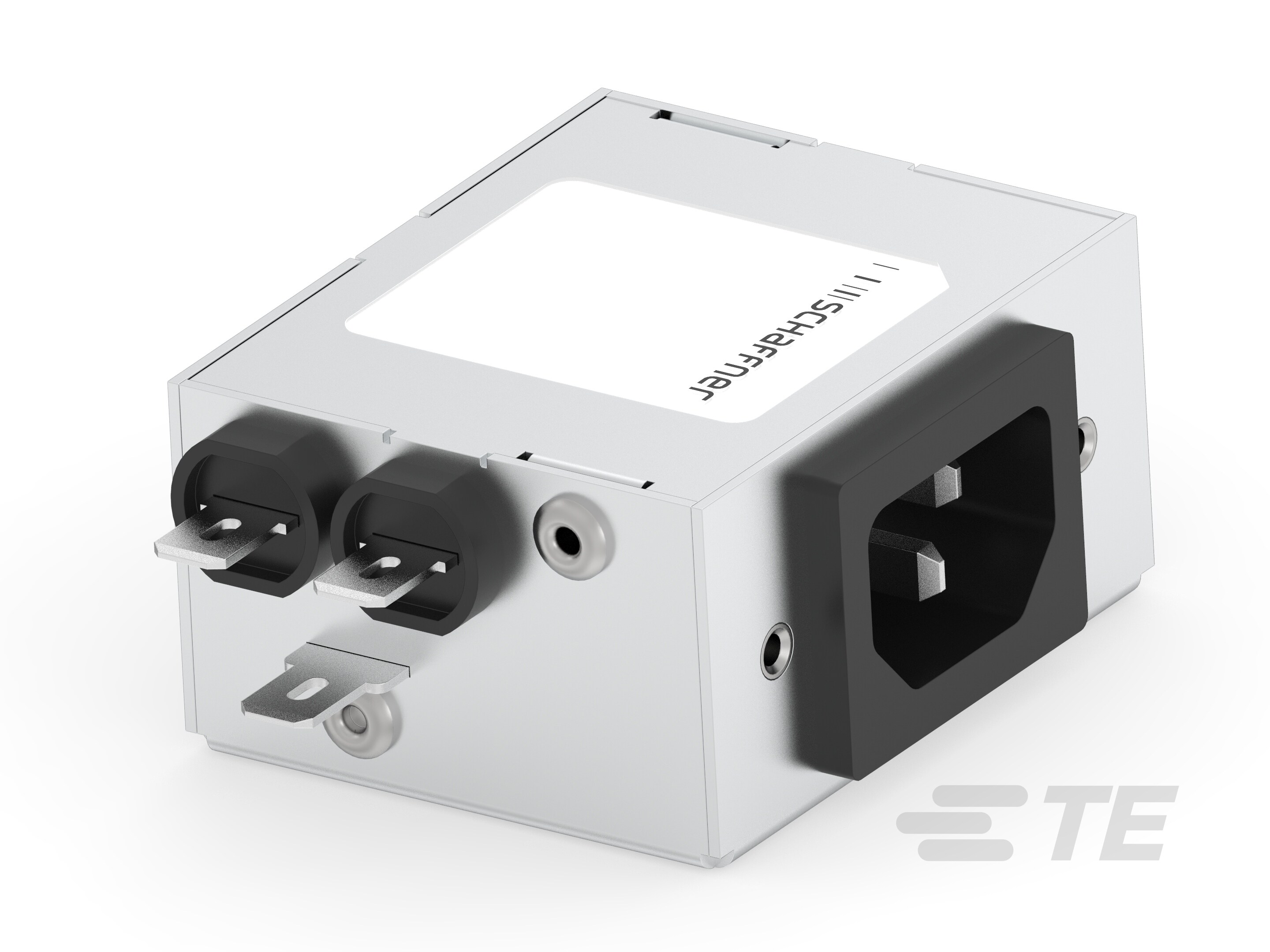

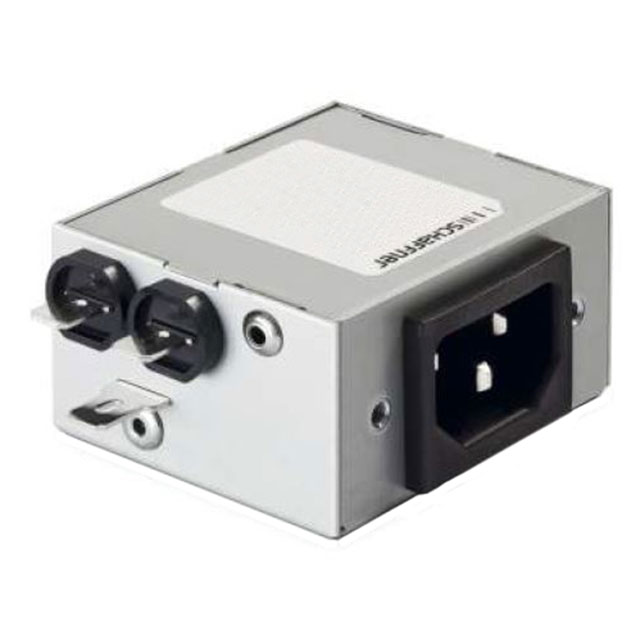

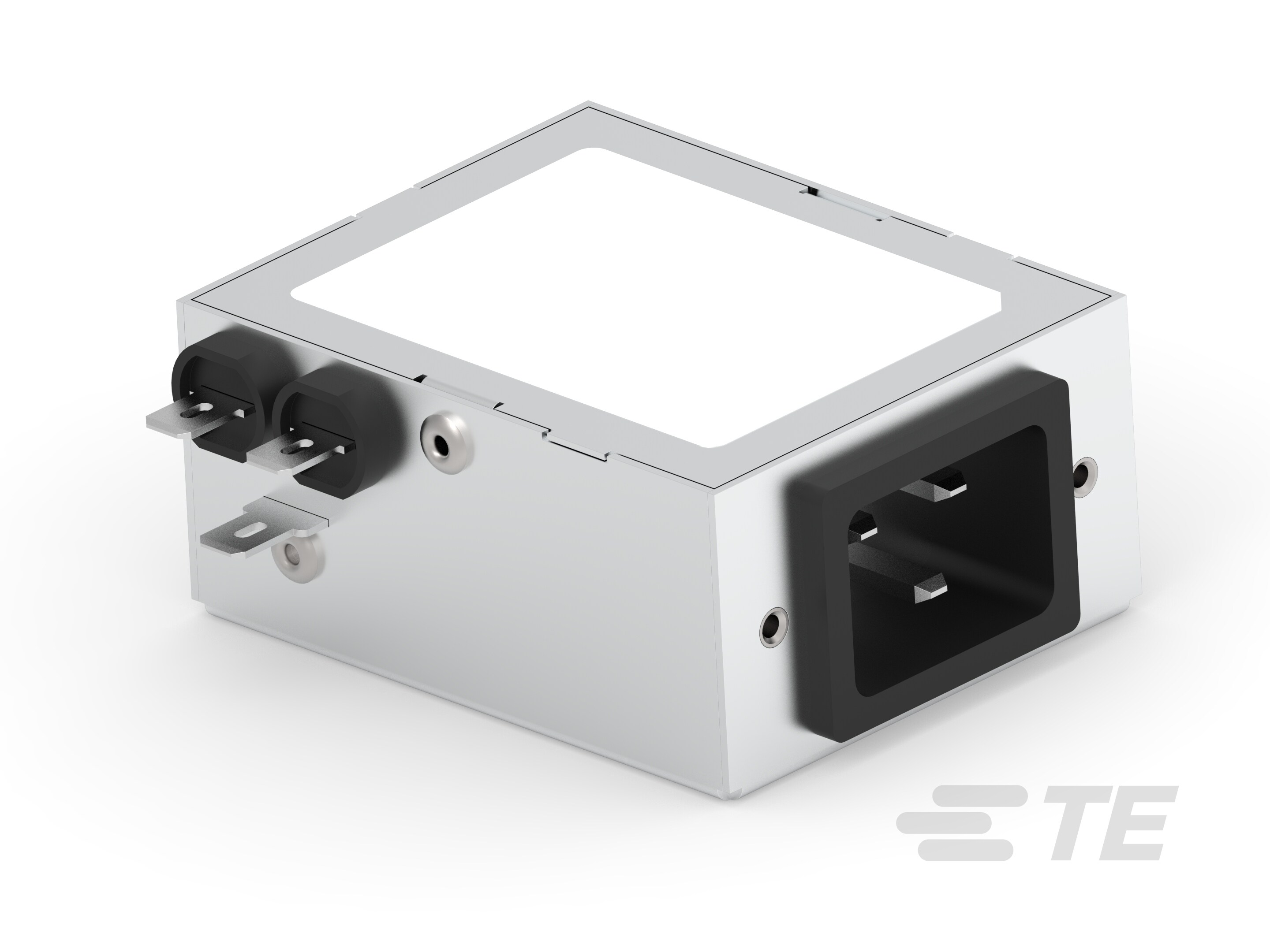

Schaffner FN9246 Series
AC Power Entry Modules 12A FASTON IEC INLET W/EARTH LINE CHOKE
Manufacturer: TE Connectivity AMP Connectors
Catalog
AC Power Entry Modules 12A FASTON IEC INLET W/EARTH LINE CHOKE
Beta
⌘K
AC Power Entry Modules 12A FASTON IEC INLET W/EARTH LINE CHOKE
AC Power Entry Modules 12A FASTON IEC INLET W/EARTH LINE CHOKE
AC Power Entry Modules 12A FASTON IEC INLET W/EARTH LINE CHOKE
| Part | Applications | Voltage - Rated AC | Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Approval Agency | Termination Style | Current | Frequency - Operating | Filter Type | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Lighting | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CSA SEMKO UR | Quick Connect | 15 A | DC ~ 400Hz | Single Phase | 890 µH |
 TE Connectivity AMP Connectors | Lighting | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CSA SEMKO UR | Quick Connect | 20 A | DC ~ 400Hz | Single Phase | 1.5 mH |
 TE Connectivity AMP Connectors | Lighting | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CSA SEMKO UR | Quick Connect | 10 A | DC ~ 400Hz | Single Phase | 3 mH |
 TE Connectivity AMP Connectors | Safety | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CSA SEMKO UR | Quick Connect | 20 A | DC ~ 400Hz | Single Phase | 1.5 mH |
 TE Connectivity AMP Connectors | Lighting | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CSA SEMKO UR | Quick Connect | 20 A | DC ~ 400Hz | Single Phase | 1.5 mH |
TE Connectivity AMP Connectors | Lighting | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CSA SEMKO UR | Quick Connect | 12 A | DC ~ 400Hz | Single Phase | 1.85 mH |
TE Connectivity AMP Connectors | Lighting | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CSA SEMKO UR | Quick Connect | 6 A | DC ~ 400Hz | Single Phase | 7 mH |
TE Connectivity AMP Connectors | Lighting | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CSA SEMKO UR | Quick Connect | 12 A | DC ~ 400Hz | Single Phase | 1.85 mH |
TE Connectivity AMP Connectors | Medical | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CE CSA ENEC UR | IEC 320-C14 Quick Connect | 16 A | DC ~ 400Hz | Three Phase (Wye) | 2.5 mH |
TE Connectivity AMP Connectors | Lighting | 250 V | Single Stage | 85 °C | -25 °C | Chassis Mount | CSA SEMKO UR | Quick Connect | 20 A | DC ~ 400Hz | Single Phase | 1.5 mH |
