QTT0223 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K

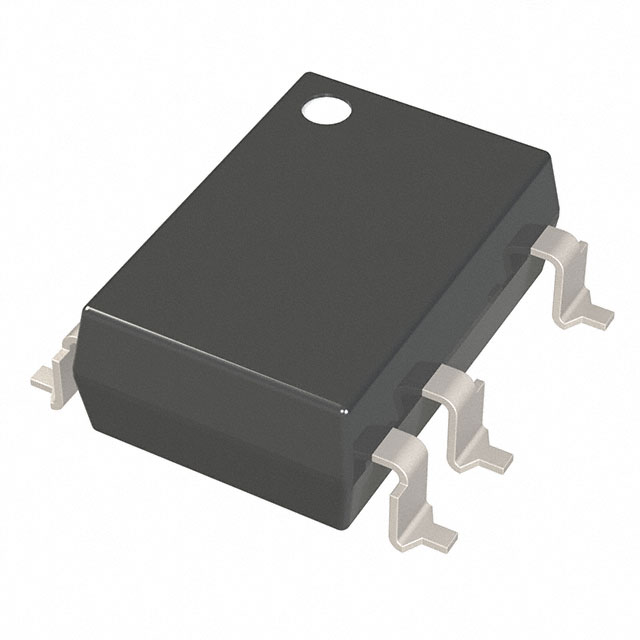

OPTOISO 5KV PWR TRIAC 1CH 7-SMD
| Part | Mounting Type | Zero Crossing Circuit | Package / Case | Current - LED Trigger (Ift) (Max) [Max] | Approval Agency | Number of Channels [custom] | Current - DC Forward (If) (Max) [Max] | Current - On State (It (RMS)) (Max) [Max] | Static dV/dt (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | Voltage - Forward (Vf) (Typ) | Current - Hold (Ih) | Supplier Device Package | Voltage - Off State |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QT Brightek (QTB) | Surface Mount | 8-SMD (7 Leads) Gull Wing | 10 mA | UL VDE | 1 | 50 mA | 300 mA | 200 V/µs | -55 C | 85 °C | Power Triac | 1.3 V | 25 mA | 7-SMD | 600 V |
