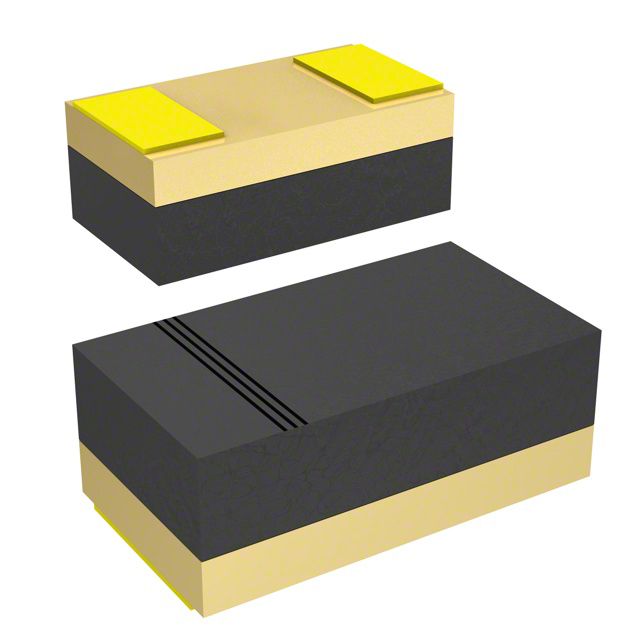

CD0603 Series

Catalog

TVS DIODE 5VWM 15VC 0603

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Package / Case	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Applications	Tolerance	Voltage - Zener (Nom) (Vz)	Impedance (Max) (Zzt) [Max]	Current - Reverse Leakage @ Vr	Power - Max [Max]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Capacitance @ Frequency
Bourns Inc. CD0603-T05C	Zener	-40 C	125 °C	Surface Mount	5.1 V	15 V	1608 Metric	0603	5.1 A	1	5 V	General Purpose
Bourns Inc. CD0603-Z5V1		-55 C	125 °C	Surface Mount			1608 Metric	0603					5 %	5.1 V	60 Ohms	100 nA	150 mW
Bourns Inc. CD0603-S01575				Surface Mount			1608 Metric	0603								2.5 µA		150 mA	1 V	Standard	200 mA	Any Speed	75 V	4 ns	-40 °C	125 °C	3 pF
Bourns Inc. CD0603-Z3		-55 C	125 °C	Surface Mount			1608 Metric	0603					5 %	3 V	95 Ohms	50 µA	150 mW
Bourns Inc. CD0603-Z6V8		-55 C	125 °C	Surface Mount			1608 Metric	0603					5 %	6.8 V	8 Ohms	100 nA	150 mW
Bourns Inc. CD0603-B0240				Surface Mount			1608 Metric	0603								10 µA		200 mA	550 mV	Schottky	200 mA	Any Speed	40 V		-40 °C	125 °C	12 pF
Bourns Inc. CD0603-T12C	Zener	-40 C	125 °C	Surface Mount	13 V	25 V	1608 Metric	0603	1 A	1	12 V	General Purpose																12 pF
Bourns Inc. CD0603-Z3V3		-55 C	125 °C	Surface Mount			1608 Metric	0603					5 %	3.3 V	95 Ohms	25 µA	150 mW
Bourns Inc. CD0603-Z13		-55 C	125 °C	Surface Mount			1608 Metric	0603					5 %	13 V	25 Ohms	100 nA	150 mW
Bourns Inc. CD0603-B0130L				Surface Mount			1608 Metric	0603								30 µA		100 mA	440 mV	Schottky	200 mA	Any Speed	30 V		-40 °C	125 °C	9 pF
