FX2ERL Series

Catalog

OM3 2 FIBER 1.6MM JACKET PATCHCO

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color - Connectors	Bend Radius [radius]	Insertion Loss	Return Loss	Length - Overall [x]	Length - Overall [x]	Cable Type	Type	2nd Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Fiber Type	Features	1st Connector	Length - Overall [custom]	Length - Overall [custom]	Length - Overall	Length - Overall
Panduit Corp FX2ERLNLNSNF015	-20 ░C	70 °C	Black	16 mm	0.25 dB	26 dB	4.6 m	180 in	Twin Zip	Duplex Multimode OM3	LC Duplex	1.6 mm	0.06 in	50/125	Riser	LC Duplex
Panduit Corp FX2ERLNLNSNF014	-20 ░C	70 °C	Black	16 mm	0.25 dB	26 dB	4.3 m	14 ft	Twin Zip	Duplex Multimode OM3	LC Duplex	1.6 mm	0.06 in	50/125	Riser	LC Duplex
Panduit Corp FX2ERLNSNSNM007			Black	16 mm	0.25 dB	26 dB			Twin Zip	Duplex Multimode OM3	SC Duplex	1.6 mm	0.06 in	50/125	Riser Zipcord	LC Duplex	7 m	23 ft
Panduit Corp FX2ERLNSNSNM017			Black	16 mm	0.25 dB	26 dB	17 m	55.8 ft	Twin Zip	Duplex Multimode OM3	SC Duplex	1.6 mm	0.06 in	50/125	Riser Zipcord	LC Duplex
Panduit Corp FX2ERLNLNSNM0.5	-20 ░C	70 °C	Black	16 mm	0.25 dB	26 dB	500 mm	1.64 ft	Twin Zip	Duplex Multimode OM3	LC Duplex	1.6 mm	0.06 in	50/125	Riser	LC Duplex

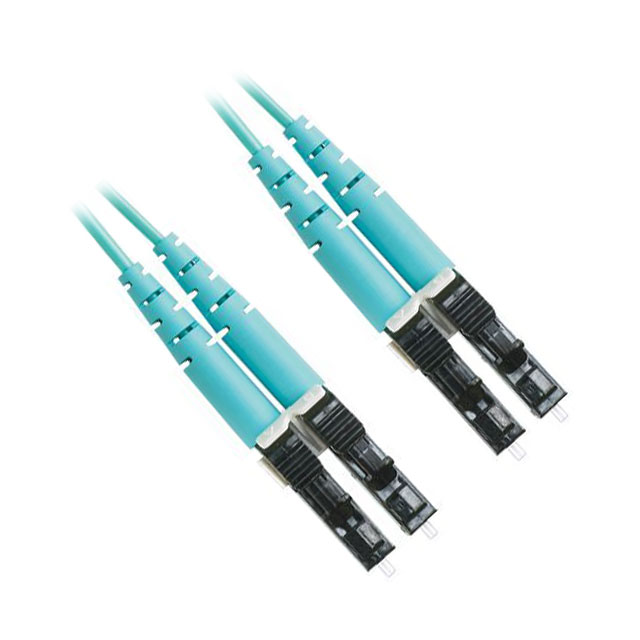

Panduit Corp FX2ERLNLNSNM004	-20 ░C	70 °C	Black	16 mm	0.25 dB	26 dB	4 m	13.1 ft	Twin Zip	Duplex Multimode OM3	LC Duplex	1.6 mm	0.06 in	50/125	Riser	LC Duplex
Panduit Corp FX2ERLNSNSNF017			Black	16 mm	0.25 dB	26 dB	5.2 m	17 '	Twin Zip	Duplex Multimode OM3	SC Duplex	1.6 mm	0.06 in	50/125	Riser Zipcord	LC Duplex
Panduit Corp FX2ERLNSNSNF007			Black	16 mm	0.25 dB	26 dB	2.1 m	7 ft	Twin Zip	Duplex Multimode OM3	SC Duplex	1.6 mm	0.06 in	50/125	Riser Zipcord	LC Duplex
Panduit Corp FX2ERLNSNSNM027			Black	16 mm	0.25 dB	26 dB	27 m	88.6 '	Twin Zip	Duplex Multimode OM3	SC Duplex	1.6 mm	0.06 in	50/125	Riser Zipcord	LC Duplex
Panduit Corp FX2ERLNLNSNM039	-20 ░C	70 °C	Black	16 mm	0.25 dB	26 dB			Twin Zip	Duplex Multimode OM3	LC Duplex	1.6 mm	0.06 in	50/125	Riser	LC Duplex			39 m	128 '
