BU9797 Series

Low Duty LCD Segment Drivers for Automotive applications

Catalog

Low Duty LCD Segment Drivers for Automotive applications

Part	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Display Type	Mounting Type	Supplier Device Package	Interface	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply

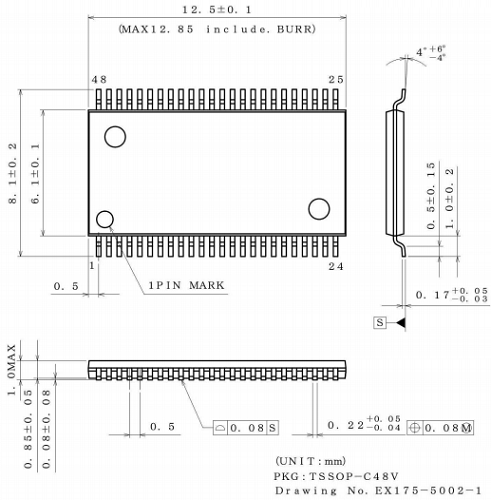

Rohm Semiconductor BU9797AFUV-E2	144 Segment	85 C	-40 ¯C	LCD	Surface Mount	48-TSSOP-CV	Serial	48-VFSOP (0.240" 6.10mm Width)	5.5 V	2.5 V	7.5 µA
Rohm Semiconductor BU9797FUV-ME2	144 Segment	85 °C	-40 C	LCD	Surface Mount	48-TSSOP-CV	Serial	48-VFSOP (0.240" 6.10mm Width)	5.5 V	2.5 V	7.5 µA

Catalog

Low Duty LCD Segment Drivers for Automotive applications

Description

BU9797FUV-M is a 1/4 duty general-purpose LCD driver that can be used for automotive applications and can drive up to 144 LCD Segments. This product can support VA LCD displays, which has better optical performance with higher LCD voltage driving and higher frame frequency driving. It has integrated display RAM for reducing CPU load. Also, it is designed with low power consumption and no external component needed.
