1.10.118 Series
Manufacturer: RAFI USA
Beta
⌘K

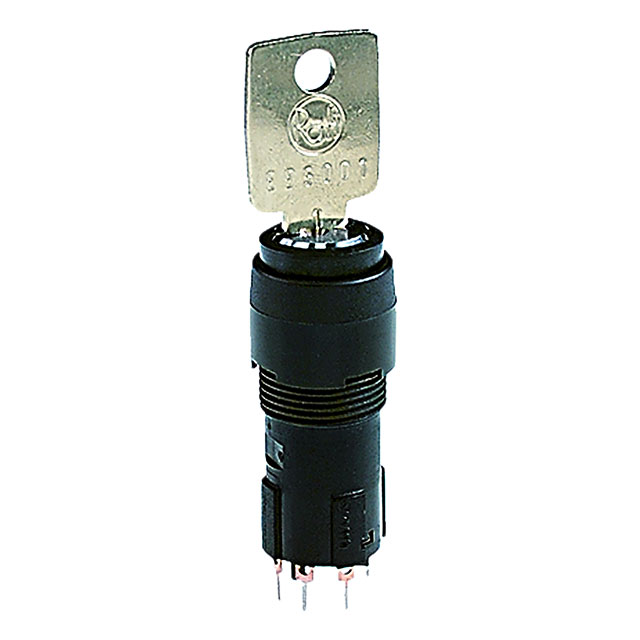

SWITCH KEYLK 4POS SP3T 100MA 35V
| Part | Voltage Rating - DC | Termination Style | Panel Cutout Dimensions [diameter] | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Depth Behind Flange | Number of Positions | Contact Finish | Electrical Life | Switch Function | Mechanical Life | Circuit | Contact Timing | Angle of Throw | Key Removable Positions | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | 35 V | Solder Lug | 16.2 mm | Flat Key | -25 °C | 70 °C | 39.5 mm | 4 | Gold Alloy | 50000 Cycles | Off-On-On-On | 50000 Cycles | SP3T | Not Specified | 90 ° | All | 100 mA | Panel Mount |
 RAFI USA | 35 V | Solder Lug | 16.2 mm | Flat Key | -25 °C | 70 °C | Gold Alloy | Off-On-On | SPDT | Not Specified | 90 ° | All | 100 mA | Panel Mount | ||||
RAFI USA | 35 V | Solder Lug | 16.2 mm | Flat Key | -25 °C | 70 °C | 4 | Gold Alloy | Off-On-On-On | SP3T | Not Specified | 90 ° | All | 100 mA | Panel Mount | |||
RAFI USA | 35 V | Solder Lug | 16.2 mm | Flat Key | -25 °C | 70 °C | 39.5 mm | Gold Alloy | 50000 Cycles | Off-On-On | 50000 Cycles | SPDT | Not Specified | 90 ° | All | 100 mA | Panel Mount |
