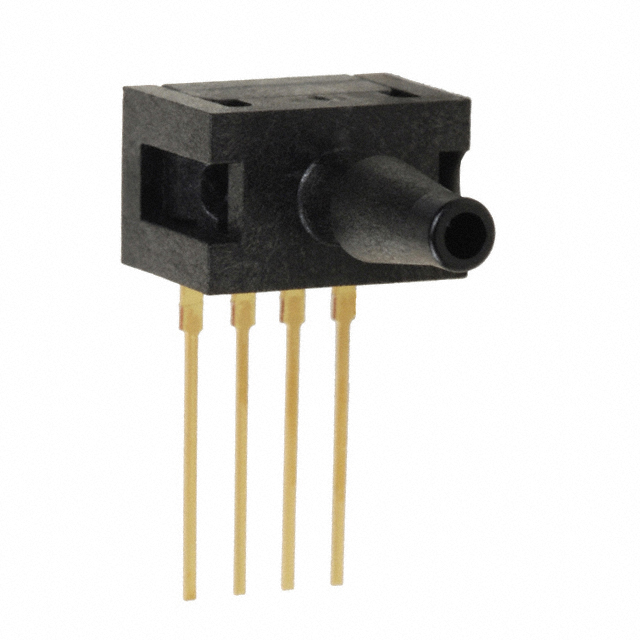

26PCCFB Series

Catalog

PRESSURE SENSOR, MINIATURE, SILICON, 0 PSI, 15 PSI

Part	Termination Style	Output [Max]	Output [Min]	Output	Features	Output Type	Port Size	Port Size	Port Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure	Maximum Pressure	Port Style	Operating Pressure	Operating Pressure	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Accuracy	Applications
Honeywell Sensing and Productivity Solutions 26PCCFB6G	PC Pin	100 mV	0 mV	10 V	Temperature Compensated	Wheatstone Bridge	4.57 mm	Male Tube	0.18 in	2.5 V	16 V	45 PSI	310.26 kPa	Barbed	15 PSI	103.42 kPa	4-SIP Module	Through Hole	85 °C	-40 C	Compound	0.5 %	Board Mount

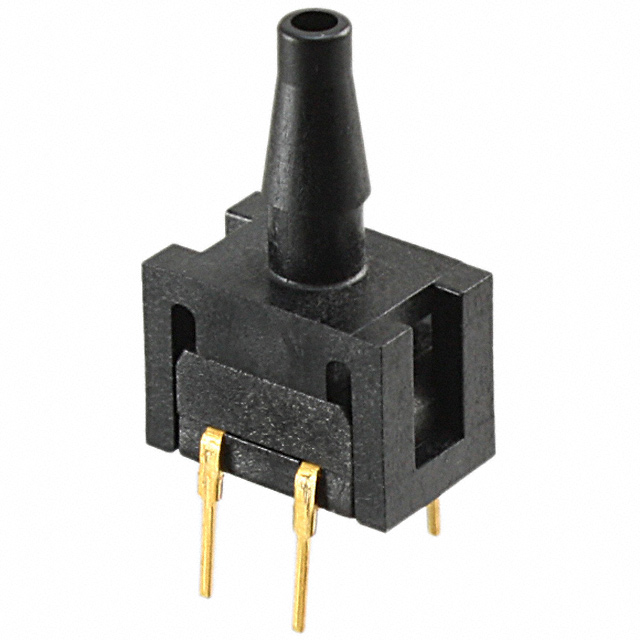

Honeywell Sensing and Productivity Solutions 26PCCFB2G	PC Pin	100 mV	0 mV	10 V	Temperature Compensated	Wheatstone Bridge	4.57 mm	Male Tube	0.18 in	2.5 V	16 V	45 PSI	310.26 kPa	Barbed	15 PSI	103.42 kPa	4-SIP Module	Through Hole	85 °C	-40 C	Compound	0.5 %	Board Mount
