DNG14 Series

Catalog

CONN QC RCPT 14-16AWG 0.187

Part	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width [x]	Tab Width [x]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Finish	Features	Termination	Tab Thickness	Tab Thickness	Terminal Type	Color	Gender	Contact Material	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]

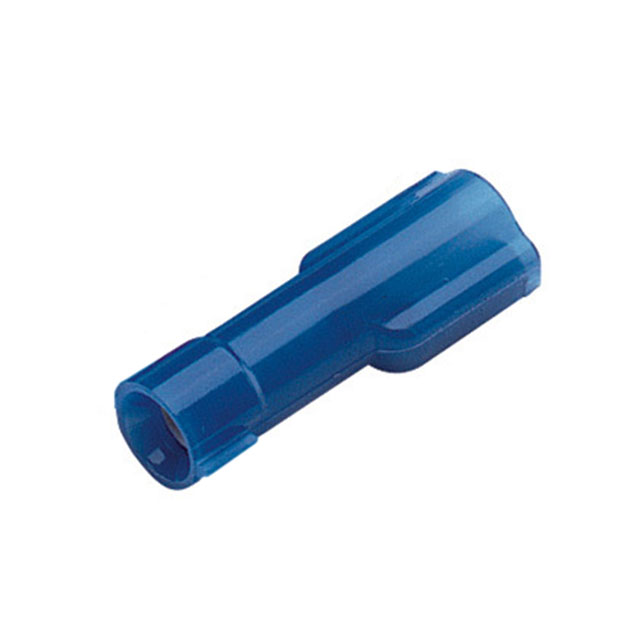

Panduit Corp DNG14-187FB-3K	Fully Insulated	14 AWG	16 AWG	0.187 in	4.75 mm	Free Hanging (In-Line)	22.61 mm	0.89 in	Tin	Butted Seam	Crimp	0.81 mm	0.032 in	Standard	Blue	Female	Brass
Panduit Corp DNG14-250FB-3K	Fully Insulated	14 AWG	16 AWG	0.25 in	6.35 mm	Free Hanging (In-Line)	23.62 mm	0.93 in	Tin	Butted Seam	Crimp	0.81 mm	0.032 in	Standard	Blue	Female	Brass

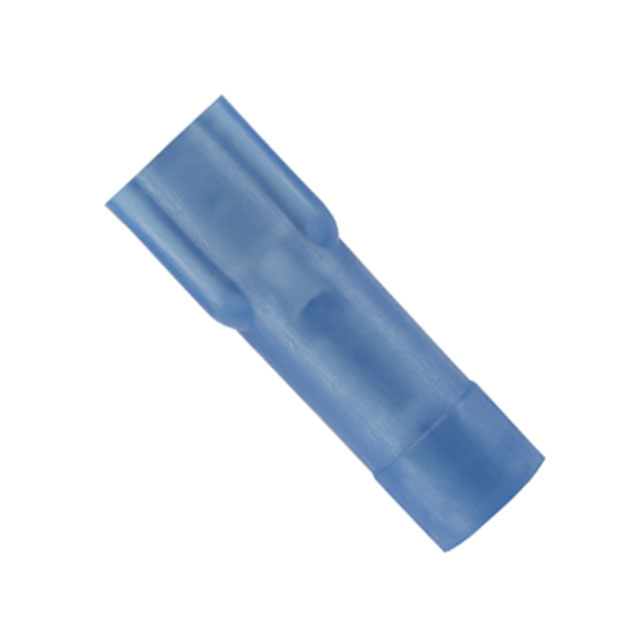

Panduit Corp DNG14-187FB-L	Fully Insulated	14 AWG	16 AWG	0.187 in	4.75 mm	Free Hanging (In-Line)	22.61 mm	0.89 in	Tin	Butted Seam	Crimp	0.81 mm	0.032 in	Standard	Blue	Female	Brass	3.89 mm	1.78 mm	0.153 "	0.07 in
