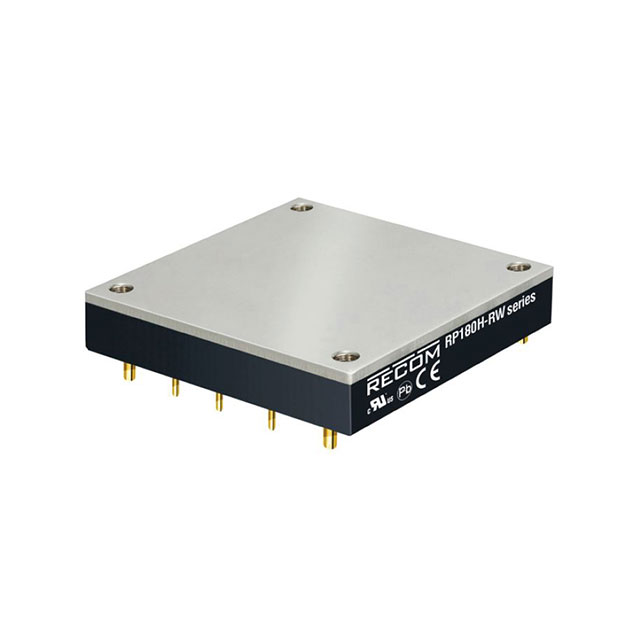

RP180H-RW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 180W 43-160VIN 12VOUT 15A

Part	Mounting Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Supplier Device Package	Power (Watts)	Voltage - Output 1	Applications	Efficiency	Package / Case	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Recom Power RP180H-11012SRW/N-HC	Through Hole	3000 V	24.13 mm	61 mm	2.28 in	24.1 mm	57.9 mm	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	43 V	-40 °C	115 °C	160 V	Isolated Module	15 A	Half Brick	180 W	12 V	ITE (Commercial) Railway	90 %	Half Brick	1

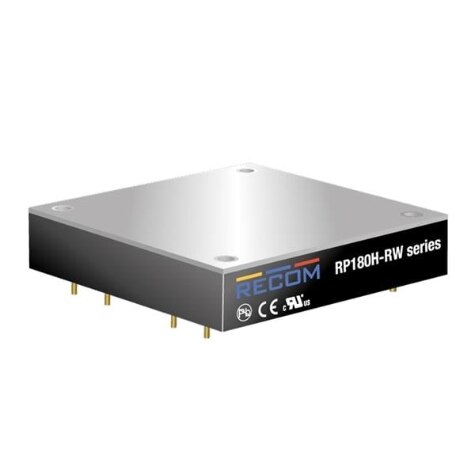

Recom Power RP180H-2448SRW/N	Through Hole	2250 VDC		61 mm		12.1 mm	57.9 mm		OCP OTP OVP Remote On/Off SCP UVLO	9 V	-40 °C	115 °C	36 V	Isolated Module	3 A	Half Brick	144 W	48 V	ITE (Commercial) Railway	90 %	Half Brick	1	2.28 "	2.4 "	0.48 "
Recom Power RP180H-11024SRW/P-HC	Through Hole	3000 V	24.13 mm	61 mm	2.28 in	24.1 mm	57.9 mm	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	43 V	-40 °C	115 °C	160 V	Isolated Module	7.5 A	Half Brick	180 W	24 V	ITE (Commercial) Railway	90 %	Half Brick	1
Recom Power RP180H-4815SRW/N	Through Hole	2250 VDC		61 mm		12.1 mm	57.9 mm		OCP OTP OVP Remote On/Off SCP UVLO	16.5 V	-40 °C	115 °C	75 V	Isolated Module	10 A	Half Brick	150 W	15 V	ITE (Commercial) Railway	91 %	Half Brick	1	2.28 "	2.4 "	0.48 "
Recom Power RP180H-4848SRW/N	Through Hole	2250 VDC		61 mm		12.1 mm	57.9 mm		OCP OTP OVP Remote On/Off SCP UVLO	16.5 V	-40 °C	115 °C	75 V	Isolated Module	3.2 A	Half Brick	154 W	48 V	ITE (Commercial) Railway	91 %	Half Brick	1	2.28 "	2.4 "	0.48 "
Recom Power RP180H-2424SRW/N-HC	Through Hole	2250 VDC	24.13 mm	61 mm	2.28 in	24.1 mm	57.9 mm	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	9 V	-40 °C	115 °C	36 V	Isolated Module	6 A	Half Brick	144 W	24 V	ITE (Commercial) Railway	90 %	Half Brick	1
Recom Power RP180H-4805SRW/P	Through Hole	2250 VDC		61 mm		12.1 mm	57.9 mm		OCP OTP OVP Remote On/Off SCP UVLO	16.5 V	-40 °C	115 °C	75 V	Isolated Module	30 A	Half Brick	150 W	5 V	ITE (Commercial) Railway	91 %	Half Brick	1	2.28 "	2.4 "	0.48 "
Recom Power RP180H-11015SRW/P-HC	Through Hole	3000 V	24.13 mm	61 mm	2.28 in	24.1 mm	57.9 mm	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	43 V	-40 °C	115 °C	160 V	Isolated Module	12 A	Half Brick	180 W	15 V	ITE (Commercial) Railway	90 %	Half Brick	1
Recom Power RP180H-2424SRW/P-HC	Through Hole	2250 VDC	24.13 mm	61 mm	2.28 in	24.1 mm	57.9 mm	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	9 V	-40 °C	115 °C	36 V	Isolated Module	6 A	Half Brick	144 W	24 V	ITE (Commercial) Railway	90 %	Half Brick	1
Recom Power RP180H-11015SRW/N	Through Hole	3000 V	0.5 in	61 mm	2.28 in	12.7 mm	57.9 mm	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	43 V	-40 °C	115 °C	160 V	Isolated Module	12 A	Half Brick	180 W	15 V	ITE (Commercial) Railway	90 %	Half Brick	1
