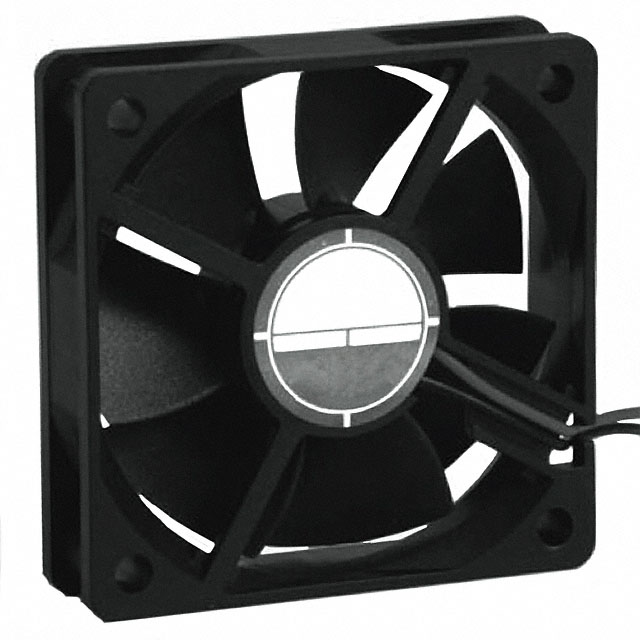

OD6015 Series

Catalog

FAN AXIAL 60X15MM 5VDC WIRE

...

Part	Material - Blade	Voltage - Rated	Width [y]	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Termination	Approval Agency	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current Rating (Amps)	Lifetime @ Temp.	Noise	Air Flow	Air Flow	RPM	Weight	Weight	Power (Watts)	Static Pressure	Static Pressure
ORION FANS OD6015-05HHSS	Polybutylene Terephthalate (PBT)	5 V	15 mm	Sealed Sleeve	60 mm	60 mm	2 Wire Leads	cURus TUV	Tubeaxial
ORION FANS OD6015-24MB01A	Polybutylene Terephthalate (PBT)	24 VDC	15 mm	Ball	60 mm	60 mm	3 Wire Leads	cURus TUV	Tubeaxial	-4 °F	167 °F	Speed Sensor (Tach)
ORION FANS OD6015-05HHSS01A	Polybutylene Terephthalate (PBT)	5 V	15 mm	Sealed Sleeve	60 mm	60 mm	3 Wire Leads	cURus TUV	Tubeaxial			Speed Sensor (Tach)
ORION FANS OD6015-05LS02A	Polybutylene Terephthalate (PBT)	5 V	15 mm	Sleeve	60 mm	60 mm	3 Wire Leads	cURus TUV	Tubeaxial			Locked Rotor Sensor
ORION FANS OD6015-05HHB	Polybutylene Terephthalate (PBT)	5 V	15 mm	Ball	60 mm	60 mm	2 Wire Leads	cURus TUV	Tubeaxial	-4 °F	167 °F	Auto Restart
ORION FANS OD6015-12MSS02A	Polybutylene Terephthalate (PBT)	12 VDC	15 mm	Sealed Sleeve	60 mm	60 mm	3 Wire Leads	cURus TUV	Tubeaxial			Locked Rotor Sensor
ORION FANS OD6015-05MB01A	Polybutylene Terephthalate (PBT)	5 V	15 mm	Ball	60 mm	60 mm	3 Wire Leads	cURus TUV	Tubeaxial	-10 °C	70 °C	Auto Restart Speed Sensor (Tach)	0.18 A	40 °C 60000 Hrs	29 dB(A)	0.392 m³/min	14 CFM	3900 RPM	35.83 g	0.079 lb	0.9 W	29.9 Pa	0.12 in H2O
ORION FANS OD6015-12HHS01A	Polybutylene Terephthalate (PBT)	12 VDC	15 mm	Sleeve	60 mm	60 mm	3 Wire Leads	cURus TUV	Tubeaxial			Speed Sensor (Tach)
ORION FANS OD6015-12LSS01A	Polybutylene Terephthalate (PBT)	12 VDC	15 mm	Sealed Sleeve	60 mm	60 mm	3 Wire Leads	cURus TUV	Tubeaxial			Speed Sensor (Tach)
ORION FANS OD6015-05LLB01A	Polybutylene Terephthalate (PBT)	5 V	15 mm	Ball	60 mm	60 mm	3 Wire Leads	cURus TUV	Tubeaxial	-4 °F	167 °F	Speed Sensor (Tach)
