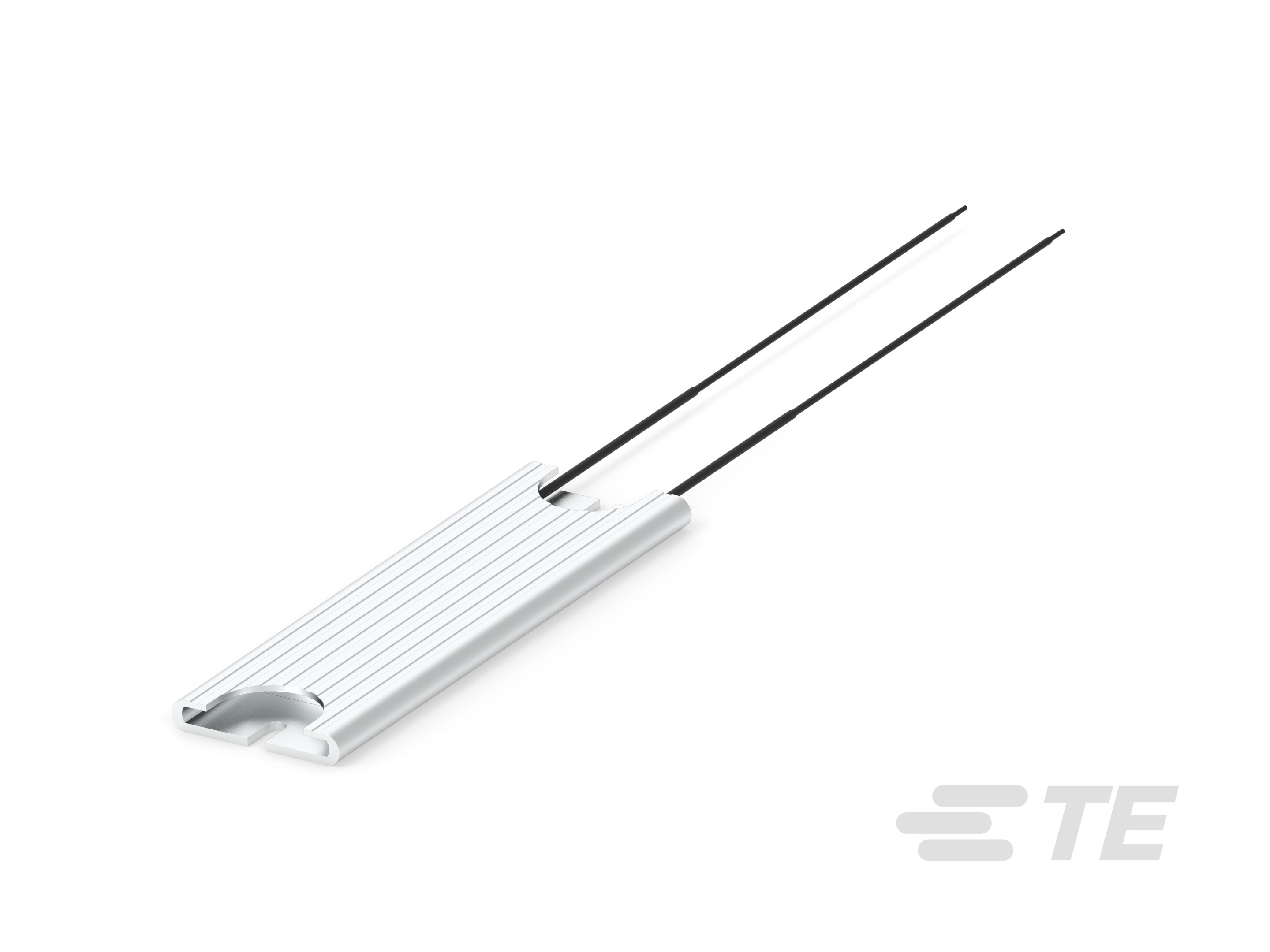

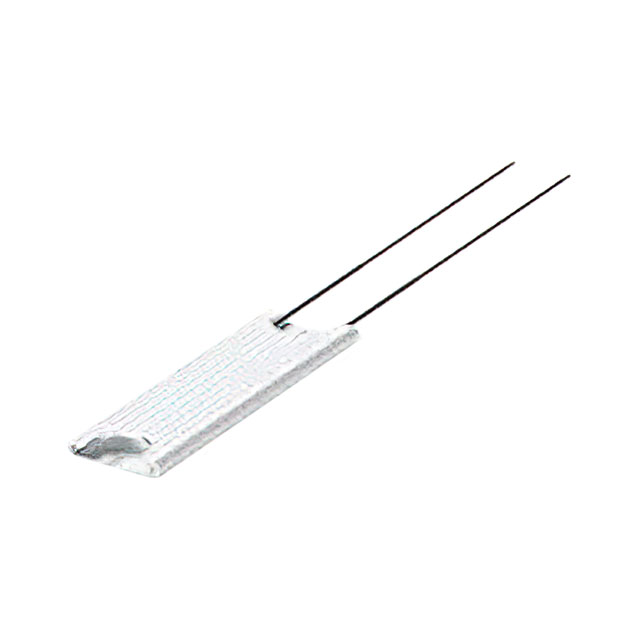

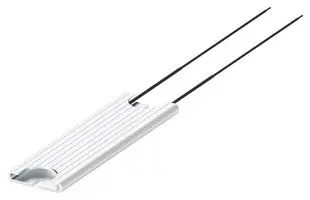

CGS HCL Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

RES, 3K9, 100W, RADIAL LEADED, WIREWOUND ROHS COMPLIANT: YES

...

Part	Features	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Composition	Tolerance	Coating, Housing Type	Mounting Feature	Lead Style	Package / Case	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TE Connectivity AMP Connectors HCL165J3K9CX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case	3.9 kOhms	6.555 in	166.5 mm	1.626 in	7.25 mm	41.3 mm	0.285 in	100 W
TE Connectivity AMP Connectors HCL165J18RCX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case	18 Ohms	6.555 in	166.5 mm	1.626 in	7.25 mm	41.3 mm	0.285 in	100 W
TE Connectivity AMP Connectors HCL130J100RCX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case	100 Ohms			1.626 in	7.25 mm	41.3 mm	0.285 in	70 W	5.177 in	131.5 mm
TE Connectivity AMP Connectors HCL165J8R2CX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case		6.555 in	166.5 mm	1.626 in	7.25 mm	41.3 mm	0.285 in	100 W
TE Connectivity AMP Connectors HCL130J820RCX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case	820 Ohms			1.626 in	7.25 mm	41.3 mm	0.285 in	70 W	5.177 in	131.5 mm
TE Connectivity AMP Connectors HCL130J3K3CX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case	3300 Ohms			1.626 in	7.25 mm	41.3 mm	0.285 in	70 W	5.177 in	131.5 mm
TE Connectivity AMP Connectors HCL130J5R6CX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case	5.6 Ohms			1.626 in	7.25 mm	41.3 mm	0.285 in	70 W	5.177 in	131.5 mm
TE Connectivity AMP Connectors HCL130J150RCX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case	150 Ohms			1.626 in	7.25 mm	41.3 mm	0.285 in	70 W	5.177 in	131.5 mm
TE Connectivity AMP Connectors HCL130J560RCX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case	560 Ohms			1.626 in	7.25 mm	41.3 mm	0.285 in	70 W	5.177 in	131.5 mm
TE Connectivity AMP Connectors HCL130J2K2CX	High Voltage	-80 ppm/°C	200 ppm/°C	Wirewound	5 %	Aluminum	Flanges	Wire Leads	Rectangular Case	2200 Ohms			1.626 in	7.25 mm	41.3 mm	0.285 in	70 W	5.177 in	131.5 mm
