DAC8534 Series
Manufacturer: Texas Instruments
Beta
⌘K
2.7V TO 5.5V, QUAD CHANNEL, 16-BIT, SERIAL INPUT DAC
| Part | Number of Bits | Reference Type | Supplier Device Package | INL/DNL (LSB) | Output Type | Differential Output | Settling Time | Data Interface | Package / Case [x] | Package / Case | Package / Case [y] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of D/A Converters | Mounting Type | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Architecture | Number of DAC's | Utilized IC / Part | Supplied Contents | DAC Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 16 | External | 16-TSSOP | - ±1 | Voltage - Buffered | 10 µs | DSP SPI | 0.173 in | 16-TSSOP | 4.4 mm | -40 °C | 105 ░C | 5.5 V | 2.7 V | 4 | Surface Mount | 2.7 V | 5.5 V | String DAC | |||||
 Texas Instruments | 16 | External | 16-TSSOP | - ±1 | Voltage - Buffered | 10 µs | DSP SPI | 0.173 in | 16-TSSOP | 4.4 mm | -40 °C | 105 ░C | 5.5 V | 2.7 V | 4 | Surface Mount | 2.7 V | 5.5 V | String DAC | |||||

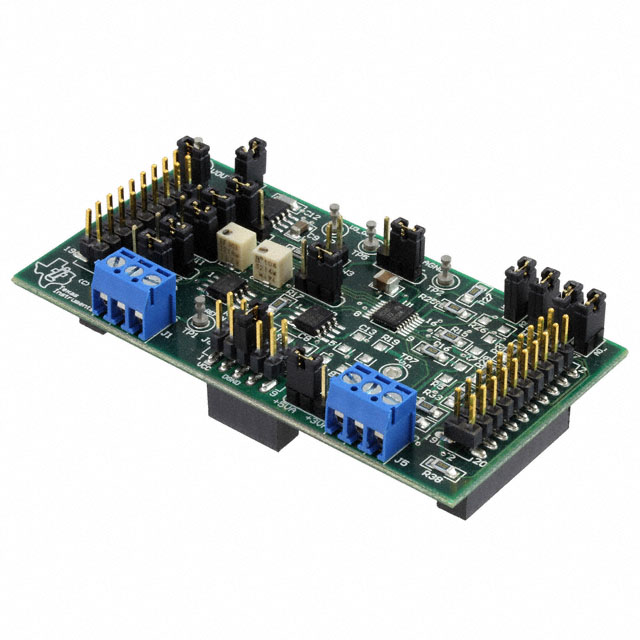

 Texas Instruments | 16 | 8 µs | DSP SPI | 2 | DAC8534 | Board(s) | Voltage | |||||||||||||||||
Texas Instruments | 16 | External | 16-TSSOP | - ±1 | Voltage - Buffered | 10 µs | DSP SPI | 0.173 in | 16-TSSOP | 4.4 mm | -40 °C | 105 ░C | 5.5 V | 2.7 V | 4 | Surface Mount | 2.7 V | 5.5 V | String DAC |
