T491B Series

Manufacturer: KEMET

Catalog

Catalog

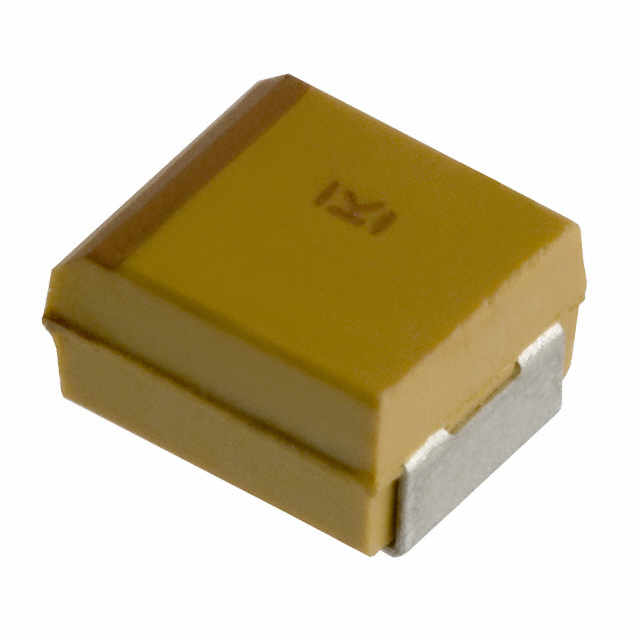

SURFACE MOUNT TANTALUM CAPACITOR, T491 SERIES, 10 F, 10%, 25 V, 1411 [3528 METRIC], B ROHS COMPLIANT: YES

...

Part	ESR (Equivalent Series Resistance)	Capacitance	Manufacturer Size Code	Tolerance	Package / Case	Package / Case	Lifetime @ Temp.	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Voltage - Rated	Mounting Type	Ratings	Grade	Qualification
KEMET T491B106K025AT	2 Ohms 3 Ohm	10 µF	B	10 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	General Purpose	25 VDC	Surface Mount
KEMET T491B106M006ATAUTO2478	3.5 Ohms	10 µF	B	20 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	Automotive	6.3 VDC	Surface Mount	AEC-Q200	Automotive	AEC-Q200
KEMET T491B105K035AT4160	5 Ohm	1 µF	B	10 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	General Purpose	35 V	Surface Mount
KEMET T491B335K016AT4100	3.5 Ohms	3.3 µF	B	10 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	General Purpose	16 V	Surface Mount
KEMET T491B105K035AT7280	5 Ohm	1 µF	B	10 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	General Purpose	35 V	Surface Mount
KEMET T491B226K010AH	2 Ohms	22 µF	B	10 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	General Purpose	10 V	Surface Mount
KEMET T491B226K016AT7634	2.2 Ohms	22 µF	B	10 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	General Purpose	16 V	Surface Mount
KEMET T491B226K006AH	2000 mOhm	22 µF	B	10 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	General Purpose	6.3 VDC	Surface Mount
KEMET T491B226M016AT42807333	2.2 Ohms	22 µF	B	20 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	General Purpose	16 V	Surface Mount
KEMET T491B475K016AH2678	3.5 Ohms	4.7 µF	B	10 %	3528 Metric	1411	2000 Hrs	Molded	3.5 mm	0.11 "	2.8 mm	0.138 in	-55 C	125 °C	2.1 mm	0.083 in	General Purpose	16 V	Surface Mount
