SIGC61T60 Series

Manufacturer: INFINEON

Catalog

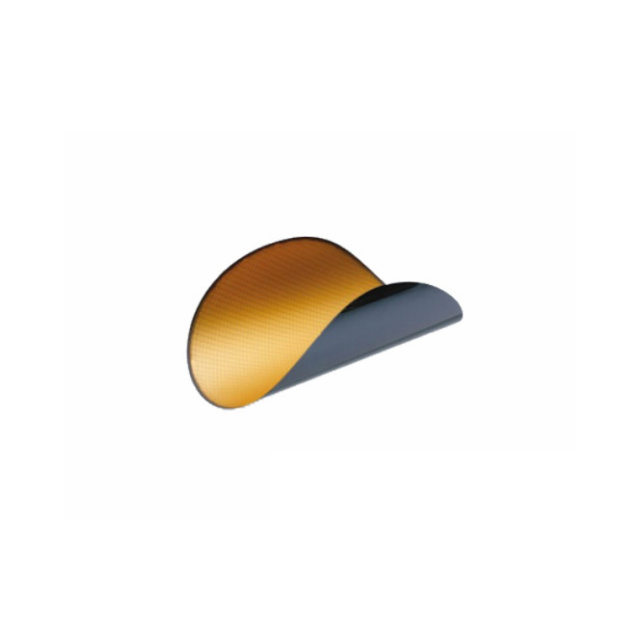

IGBT NPT 600V 75A DIE

Part	Current - Collector Pulsed (Icm)	Test Condition	Vce(on) (Max) @ Vge, Ic	Mounting Type	Package / Case	Td (on/off) @ 25°C [Min]	Td (on/off) @ 25°C [Max]	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	IGBT Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
INFINEON SIGC61T60NCX1SA3	225 A	3 Ohm 15 V 75 A 300 V	2.5 V	Surface Mount	Die	65 ns	170 ns	75 A	600 V	NPT	150 °C	-55 °C	Die
INFINEON SIGC61T60NCX7SA1	225 A	3 Ohm 15 V 75 A 300 V	2.5 V	Surface Mount	Die	65 ns	170 ns	75 A	600 V	NPT	150 °C	-55 °C	Die
INFINEON SIGC61T60NCX1SA1	225 A	3 Ohm 15 V 75 A 300 V	2.5 V	Surface Mount	Die	65 ns	170 ns	75 A	600 V	NPT	150 °C	-55 °C	Die
